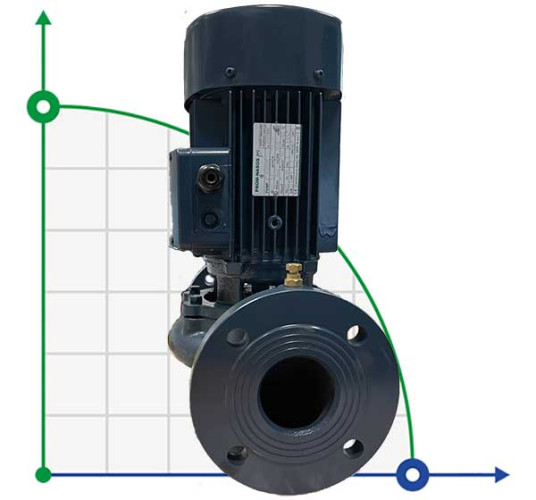

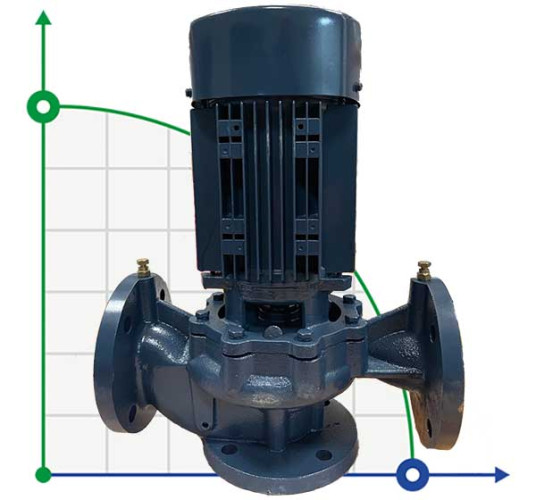

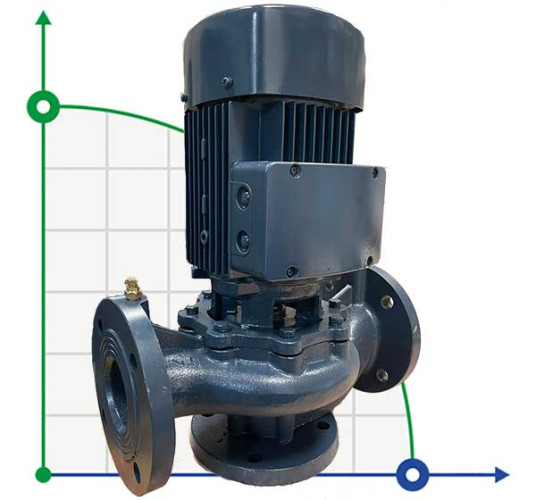

BT 100-320/15 pump in-line
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
DN100
Producer:
BTS Engineering
Impeller material:
cast iron
Power supply:
3х380 V, 50 Hz
Max. head, m:
32
Rate of turn, rpm:
2 900
Feed height, m:
32
See all
Documentation
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features BT 100-320/15 pump in-line
Output pipe diameter | DN100 |
Producer | BTS Engineering |
Impeller material | cast iron |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 32 |
Rate of turn, rpm | 2 900 |
Feed height, m | 32 |
Power capacity, kW | 15 |
Protection | IP55 |
Pump capacity, cu.m/hour | 210 |
Seal | Mechanical Seal, Carbon-SiC-NBR |
Max.flow rate, m3/h | 210 |
Max.temperature, C | 120 |
Input pipe diameter | DN100 |
Material | cast iron |
Serial number of the pump | BT |
Country of Origin | China |
PumpType | in-line |
Drive Type | electric |
Installation Type | vertical |
Type of configuration | with engine |
Warranty, months | 12 |
Application | hot water supply, hot water, pressure increase, glycol, boiler, air conditioning systems, cooling, water supply, ethylene glycol, hot water supply, coolant, water, water supply, recycling water supply, ice water, cooling towers, glaze, drying, circulation, heating, drying chamber |
Analogue for | KOLMEKS |
Weight, kg | 143 |
Height of transport volume, cbm | 0,199 |
Description BT 100-320/15 pump in-line
Stainless steel standard pump BZ
Used for: water supply, cleaning sets, pressure boosting, firefighting sets, irrigation,
industrial applications, water circulation in climatisation sets, agricultural applications.
Suitable for use with clean, aggressive liquids that are chemically
compatible with the materials from which the pump is made.
The pumps must be installed in enclosed places, or at least protected against inclement weather.
TECHNICAL DESCRIPTION
- New stainless steel standard pump
- Original design by PURITY
- Both square motor & round motor available
- YE3 high efficient motor, with protection IP55 class F
- Pump case in stainless steel AISI 304
- Impeller in stainless steel AISI 304
- Shaft in stainless steel AISI 304
- Quality NSK bearing, wear resistance mechanical seal
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1
Documentation BT 100-320/15 pump in-line
Download instructions, catalog for BT 100-320/15 pump in-line
