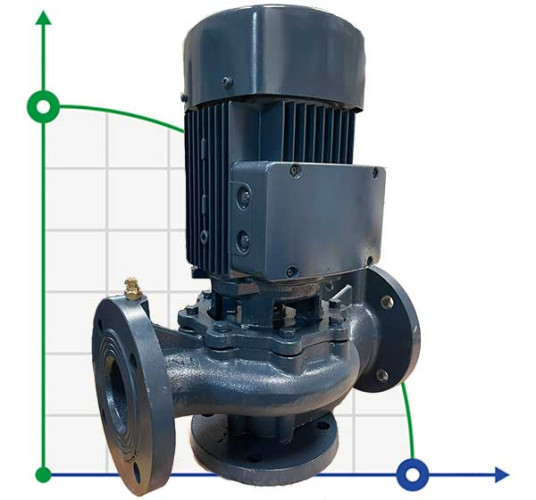

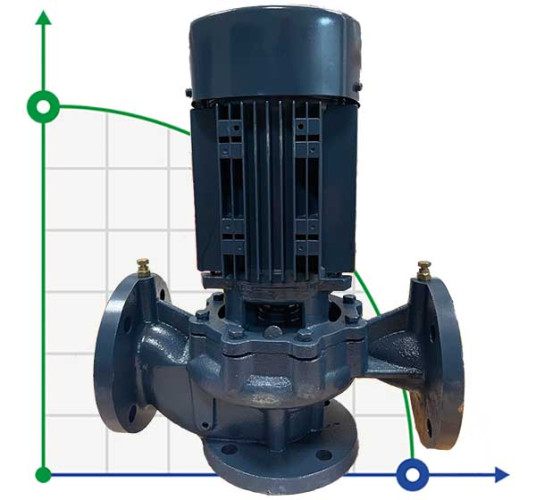

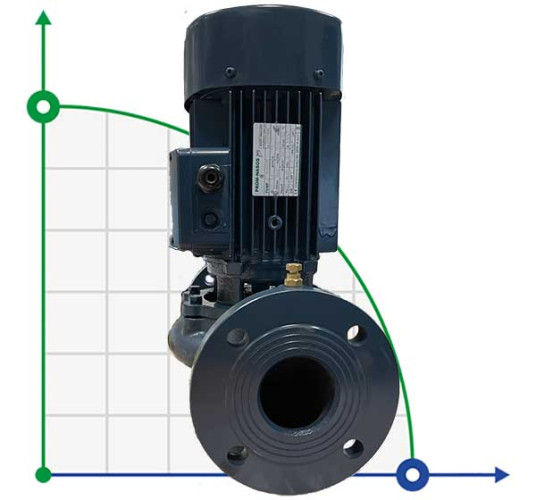

BT 50-460/5,5 pump in-line
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
DN50
Producer:
BTS Engineering
Impeller material:
AISI 304 stainless steel
Power supply:
3х380 V, 50 Hz
Max. head, m:
46
Rate of turn, rpm:
2 900
Feed height, m:
46
See all
Documentation
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features BT 50-460/5,5 pump in-line
Output pipe diameter | DN50 |
Producer | BTS Engineering |
Impeller material | AISI 304 stainless steel |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 46 |
Rate of turn, rpm | 2 900 |
Feed height, m | 46 |
Power capacity, kW | 5,5 |
Protection | IP55 |
Pump capacity, cu.m/hour | 42 |
Seal | Mechanical Seal, Carbon-SiC-NBR |
Max.flow rate, m3/h | 42 |
Max.temperature, C | 120 |
Input pipe diameter | DN50 |
Material | cast iron |
Serial number of the pump | BT |
Country of Origin | China |
PumpType | in-line |
Drive Type | electric |
Installation Type | vertical |
Type of configuration | with engine |
Warranty, months | 12 |
Application | water, hot water, pressure increase, hot water supply, water supply, glycol, air conditioning systems, cooling, water supply, ethylene glycol, hot water supply, coolant, boiler, recycling water supply, drying chamber, ice water, cooling towers, glaze, drying, circulation, heating |
Analogue for | KOLMEKS |
Weight, kg | 66 |
Height of transport volume, cbm | 0,077 |
Description BT 50-460/5,5 pump in-line
PT Vertical Inline Pump
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The vertical inline pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
TECHNICAL DESCRIPTION:
- New vertical inline pump
- Original design by PURITY (patented)
- Both square motor & round motor available
- YE3 high efficient motor, with protection IP55 class F
- Pump case with anti-corrosive coating
- Impeller in stainless steel AISI 304 or cast iron
- Shaft in stainless steel AISI 304 or galvanized iron
- Galvanized counter flange with bolts, nuts and gaskets
- Quality NSK bearing, wear resistance mechanical seal
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Documentation BT 50-460/5,5 pump in-line
Download instructions, catalog for BT 50-460/5,5 pump in-line
