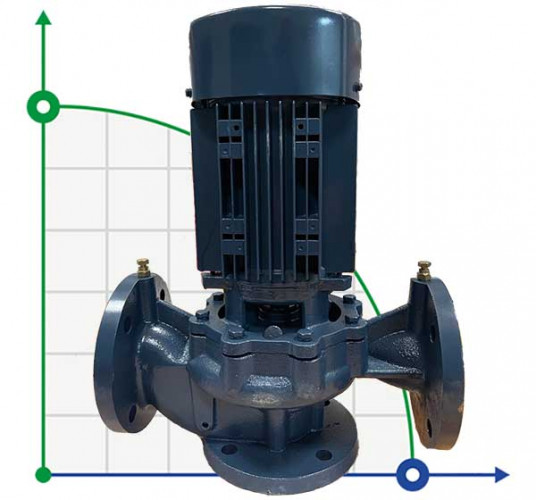

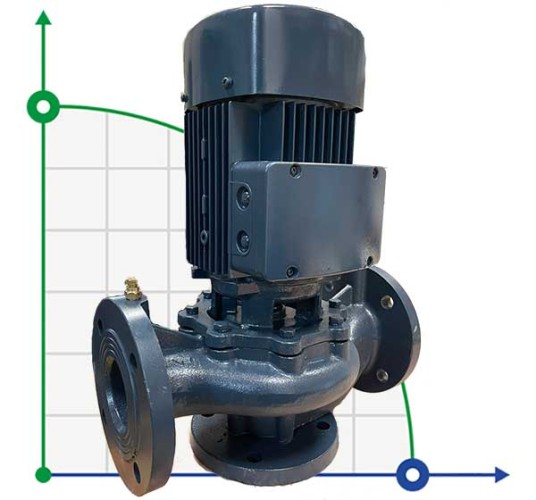

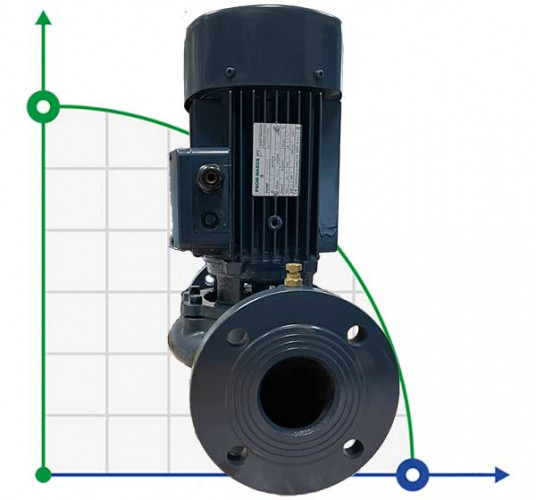

BTm 65-310/3 pump in-line

BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
BTm 65-310/3 pump in-line
Brand:
BTS Engineering
0 Comment
Characteristics
Output pipe diameter:
DN65
Producer:
BTS Engineering
Impeller material:
cast iron
Power supply:
1х220 V, 50 Hz
Max. head, m:
31
Rate of turn, rpm:
2 900
Feed height, m:
31
See all
Documentation
Categories
Pumps in-line, Centrifugal industrial pumps, Pumps for water supply, Pumps inline heating water supply
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1019214
$951.82 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Products from the same category
BTm 65-140/1,1 pump in-line BTm 65-140/1,1 pump in-line
Pre-order only
$628.77
BTm 65-180/1,5 pump in-line BTm 65-180/1,5 pump in-line
Pre-order only
$656.52
BTm 65-240/2,2 pump in-line BTm 65-240/2,2 pump in-line
Pre-order only
$687.80
BTKF-I 80-160, 15kW inline pump (3000) BTKF-I 80-160, 15kW inline pump (3000)
Pre-order only
$2,273.78
BTKF-I 50-200 in-line centrifual pump (1500) BTKF-I 50-200 in-line centrifual pump (1500)
Pre-order only
$1,419.50
BTKF-I 80-200, 3 kW in-line centrifual pump (1500) BTKF-I 80-200, 3 kW in-line centrifual pump (1500)
Pre-order only
$1,045.28
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
$123.52
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
$2,156.03
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
$82.35
PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE
$365.65
Control panel for pump, 4 kW Control panel for pump, 4 kW
$427.46
PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$309.30
Control panel for pump, 1.5 kW Control panel for pump, 1.5 kW
$225.79
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
$131.26
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
$141.53
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
$164.70
Control panel for pump, 3 kW Control panel for pump, 3 kW
$415.77
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
$200.71
DN50 Thermodynamic flanged condensate trap PN16/1.0619 DN50 Thermodynamic flanged condensate trap PN16/1.0619
$483.25
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
$236.74
Control panel for pump, 5.5 kW Control panel for pump, 5.5 kW
$441.80
Control panel for pump, 2.2 kW Control panel for pump, 2.2 kW
$301.99
Control panel for pump, 7.5 kW Control panel for pump, 7.5 kW
$448.62
DN40 Thermodynamic flanged condensate trap PN16/1.0619 DN40 Thermodynamic flanged condensate trap PN16/1.0619
$422.86
Control panel for pump, 22 kW Control panel for pump, 22 kW
$1,724.41
Control panel for pump, 11 kW Control panel for pump, 11 kW
$463.25
Control panel for pump, 18.5 kW Control panel for pump, 18.5 kW
$748.87
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$62.01
Control panel for pump, 15 kW Control panel for pump, 15 kW
$620.95
PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
$22.57
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
$292.50
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features BTm 65-310/3 pump in-line
Output pipe diameter
DN65
Producer
BTS Engineering
Impeller material
cast iron
Power supply
1х220 V, 50 Hz
Max. head, m
31
Rate of turn, rpm
2 900
Feed height, m
31
Power capacity, kW
3
Protection
IP55
Pump capacity, cu.m/hour
42
Seal
Mechanical Seal, Carbon-SiC-NBR
Max.flow rate, m3/h
42
Max.temperature, C
120
Input pipe diameter
DN65
Material
cast iron
Serial number of the pump
BTm
Country of Origin
China
PumpType
in-line
Drive Type
electric
Installation Type
vertical
Type of configuration
with engine
Warranty, months
12
Application
hot water supply, water, hot water, pressure increase, glycol, water supply, air conditioning systems, cooling, water supply, ethylene glycol, hot water supply, coolant, boiler, recycling water supply, drying chamber, ice water, cooling towers, glaze, drying, circulation, heating
Analogue for
KOLMEKS
Weight, kg
48
Height of transport volume, cbm
0,069
Description BTm 65-310/3 pump in-line
PT Vertical Inline Pump Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. The vertical inline pumps are recommended for use in water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural. TECHNICAL DESCRIPTION: - New vertical inline pump - Original design by PURITY (patented) - Both square motor & round motor available - YE3 high efficient motor, with protection IP55 class F - Pump case with anti-corrosive coating - Impeller in stainless steel AISI 304 or cast iron - Shaft in stainless steel AISI 304 or galvanized iron - Galvanized counter flange with bolts, nuts and gaskets - Quality NSK bearing, wear resistance mechanical seal Liquid temperature between -10℃ and +120℃ Ambient temperature up to +50℃ Max. working pressure 16 bar
Documentation BTm 65-310/3 pump in-line

Download instructions, catalog for BTm 65-310/3 pump in-line
