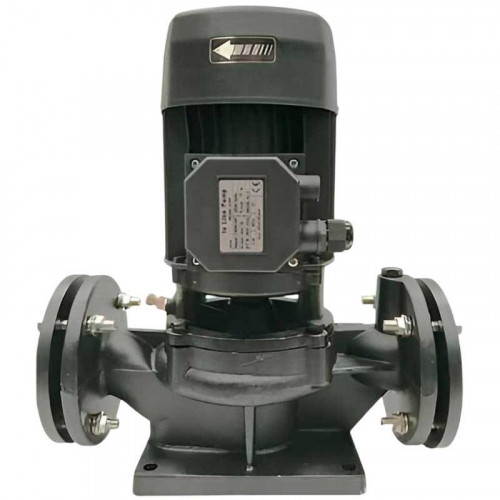

JL 100-10 Centrifugal pump
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
DN100
Producer:
BTS Engineering
Volume, m3:
0,112
Power supply:
3х380 V, 50 Hz
Net weight,kg:
94
Max. head, m:
22
Feed height, m:
22
See all
Documentation
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features JL 100-10 Centrifugal pump
Output pipe diameter | DN100 |
Producer | BTS Engineering |
Volume, m3 | 0,112 |
Power supply | 3х380 V, 50 Hz |
Net weight,kg | 94 |
Max. head, m | 22 |
Feed height, m | 22 |
Power capacity, kW | 7,5 |
Pump capacity, cu.m/hour | 105 |
Explosion protection | No |
Max.flow rate, m3/h | 105 |
Nom.pressure, Mpa | 1,6 |
Max.temperature, C | 120 |
Material of flow channel | cast iron |
Input pipe diameter | DN100 |
Material | cast iron |
Serial number of the pump | JL |
Country of Origin | China |
PumpType | in-line |
Drive Type | electric |
Installation Type | vertical |
Availability of spare parts | yes |
Warranty, months | 12 |
Application | air conditioning systems, coolant, hot water supply, ethylene glycol, water supply, cooling, glycol, hot water supply, drying, glaze, cooling towers, ice water, circulation, heating, drying chamber, water supply, boiler, water, hot water, pressure increase, recycling water supply |
Analogue for | EBARA LPS, SPRUT 3VP, SPRUT GPD, Speroni SCR, WILO TOP-S, WILO CronoLine-IL-E, WILO VeroLine-IPL, EBARA EGO EASY, PSPRUT 3VP, Grundfos UPS, DAB DCP-G, DAB DCP, DAB CP-G, DAB CP, DAB DCM-G, SPRUT 1V, KSB Etaline, DAB CM-G, KSB Calio, CALPEDA NM, CALPEDA NR, CALPEDA NC, KSB Etaline-R, KSB Etanorm, KSB Calio S, DAB DCM, DAB CM, DAB DKLP, DAB DKLM, DAB ALM, DAB ALP, DAB KLM, DAB KLP |
Description JL 100-10 Centrifugal pump
Flange-type centrifugal pumps are applied in sealed and open vented heating systems with forced coolant circulation.
Medium doesn’t come in contact with the pump motor in comparison to the pumps with wet rotor. Inlet and discharge pipes of JL centrifugal pumps are parallel to each other with the similar nominal bores. The JL pumps are equipped with standard flange-type electric air-cooled motors.
Documentation JL 100-10 Centrifugal pump
Download instructions, catalog for JL 100-10 Centrifugal pump
