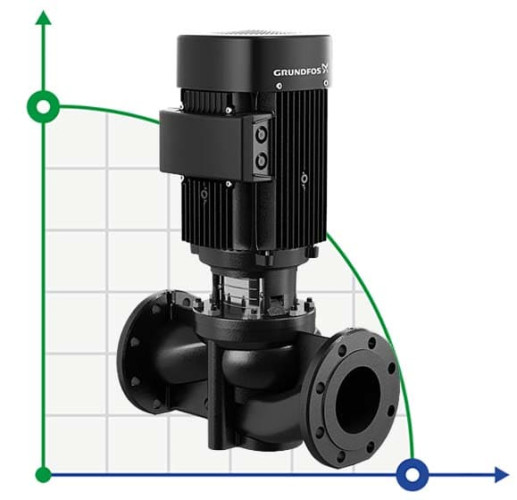

In-line pump Grundfos TP 65-180/2 A-F-A-BQBE-HX1
In-line pump Grundfos TP 65-180/2 A-F-A-BQBE-HX1
In-line pump Grundfos TP 65-180/2 A-F-A-BQBE-HX1
Brand:
GRUNDFOSCharacteristics
Output pipe diameter:
DN 65
Producer:
GRUNDFOS
Housing material:
Сast iron
Impeller material:
AISI 304 stainless steel
Nom.head, m:
19.1
Power supply:
3х380 V, 50 Hz
Max. head, m:
24
See all
Categories
Favorite
Compare
Products from the same category
In-line pump Grundfos CR 10-20 A-FJ-A-E-HQQE
Pre-order only
$4,458.60
In-line pump Grundfos TP 50-240/2 A-F-A-BQQE-IX1
Pre-order only
$1,922.69
In-line pump Grundfos TP 50-120/2 A-F-A-BQQE-FX1
Pre-order only
$1,674.39
In-line pump Grundfos TP 50-160/2 A-F-A-BQQE-GX1
Pre-order only
$1,698.12
In-line pump Grundfos TP 65-340/2 A-F-A-BAQE-LX1
Pre-order only
$3,178.70
In-line pump Grundfos TP 65-250/2 A-F-A-BQQE-KX1
Pre-order only
$2,367.85
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures In-line pump Grundfos TP 65-180/2 A-F-A-BQBE-HX1
Output pipe diameter | DN 65 |
Producer | GRUNDFOS |
Housing material | Сast iron |
Impeller material | AISI 304 stainless steel |
Nom.head, m | 19.1 |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 24 |
Rate of turn, rpm | 2 900 |
Feed height, m | 24 |
Nom.flow rate, m3/h | 28 |
Power capacity, kW | 1,5 |
Protection | IP55 |
Pump capacity, cu.m/hour | 28 |
Explosion protection | No |
Impeller diameter, mm | 130 |
Max.temperature, C | 140 |
Input pipe diameter | DN 65 |
Material | cast iron |
Serial number of the pump | TP |
Country of Origin | Denmark |
PumpType | in-line |
Drive Type | electric |
Installation Type | vertical |
Weight, kg | 53,2 |
Description In-line pump Grundfos TP 65-180/2 A-F-A-BQBE-HX1
One-stage single in-line centrifugal pump
Advantages of this series of pumps:
- cataphoretic treatment of the flow part;
- rigid sleeve coupling, which facilitates maintenance;;
- hydraulically balanced flow part;
In-line design with suction and discharge nozzles, allows pumps to be mounted in pipelines or on a concrete foundation, maintenance-free butt seal made of corrosion-resistant metal.
