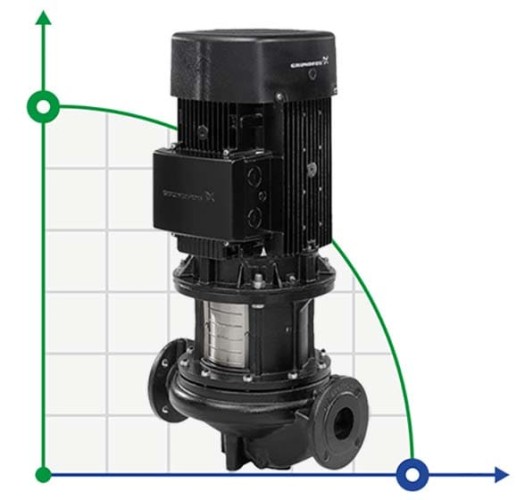

In-line pump Grundfos TP 65-250/2 A-F-A-BQQE-KX1
Brand:
GRUNDFOS0 Comment
Characteristics
Output pipe diameter:
DN 65
Producer:
GRUNDFOS
Housing material:
Сast iron
Impeller material:
cast iron
Nom.head, m:
19.1
Power supply:
3х380 V, 50 Hz
Max. head, m:
24
See all
Categories
Favorite
Compare

Products from the same category

In stock
$5,295.82
$7,565.45
-30%

In stock
$4,411
$6,301.43
-30%
Also buy with this product




Features In-line pump Grundfos TP 65-250/2 A-F-A-BQQE-KX1
Output pipe diameter | DN 65 |
Producer | GRUNDFOS |
Housing material | Сast iron |
Impeller material | cast iron |
Nom.head, m | 19.1 |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 24 |
Rate of turn, rpm | 2 900 |
Feed height, m | 24 |
Nom.flow rate, m3/h | 51.7 |
Power capacity, kW | 4 |
Protection | IP55 |
Pump capacity, cu.m/hour | 51.7 |
Explosion protection | No |
Impeller diameter, mm | 130 |
Max.temperature, C | 120 |
Input pipe diameter | DN 65 |
Material | cast iron |
Serial number of the pump | TP |
Country of Origin | Denmark |
PumpType | in-line |
Drive Type | electric |
Installation Type | vertical |
Weight, kg | 53,2 |
Description In-line pump Grundfos TP 65-250/2 A-F-A-BQQE-KX1
One-stage single in-line centrifugal pump
Advantages of this series of pumps:
- cataphoretic treatment of the flow part;
- rigid sleeve coupling, which facilitates maintenance;;
- hydraulically balanced flow part;
In-line design with suction and discharge nozzles, allows pumps to be mounted in pipelines or on a concrete foundation, maintenance-free butt seal made of corrosion-resistant metal.
