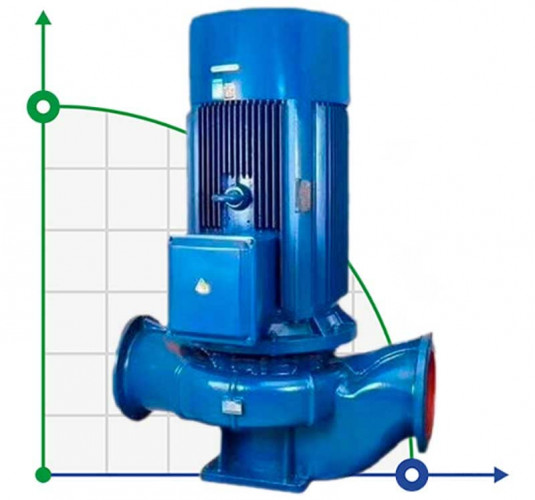

Pump for water supply IRG TKG 25/110-0.55/2 (4/15), 0.55 kW, 2900

Characteristics
Output pipe diameter:
25
Producer:
BTS Engineering
Nom.head, m:
15
Power supply:
3х380 V, 50 Hz
Rate of turn, rpm:
2 900
Feed height, m:
15
Nom.flow rate, m3/h:
4
See all
Categories
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1047042
Price on request
Favorite
Compare
We deliver anywhere in the world
Also buy with this product
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Pump for water supply IRG TKG 25/110-0.55/2 (4/15), 0.55 kW, 2900
Output pipe diameter
25
Producer
BTS Engineering
Nom.head, m
15
Power supply
3х380 V, 50 Hz
Rate of turn, rpm
2 900
Feed height, m
15
Nom.flow rate, m3/h
4
Power capacity, kW
0,55
Pump capacity, cu.m/hour
4
Explosion protection
No
Impeller diameter, mm
110
Material of flow channel
cast iron
Suction capacity (NPSH), m
2,3
Input pipe diameter
25
Material
cast iron
Serial number of the pump
TKG
Country of Origin
China
PumpType
in-line
Drive Type
electric
Installation Type
vertical
Type of configuration
with engine
Warranty, months
12
Application
irrigation systems, for water supply systems, firefighting, irrigation, water supply, cooling towers
Weight, kg
26
Description Pump for water supply IRG TKG 25/110-0.55/2 (4/15), 0.55 kW, 2900
Application of industrial pumps of the TKG series: heat supply, irrigation, cooling and circulation, in central heating and hot water supply systems, fire extinguishing systems, booster systems, systems for water preparation, irrigation, hot and cold water supply in heating, cooling and air conditioning systems, for power boilers thanks to the reliable design of the pump, pumping clean liquids that do not contain abrasive impurities and are not aggressive to the materials from which the pump is made. The pump is ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. If it is intended to pump a liquid whose density and/or viscosity differs from the same parameters of water, then due to the change in hydraulic power, it is necessary to take into account the power of the electric motor required in this case.
Documentation Pump for water supply IRG TKG 25/110-0.55/2 (4/15), 0.55 kW, 2900

Download instructions, catalog for Pump for water supply IRG TKG 25/110-0.55/2 (4/15), 0.55 kW, 2900
