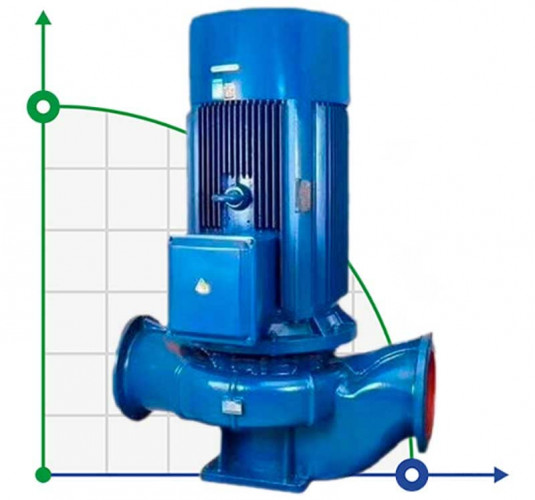

Ice-water pump IRG TKG 350/460-200/4 (995/44), 200 kW, 1480
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
350
Producer:
BTS Engineering
Nom.head, m:
44
Power supply:
3х380 V, 50 Hz
Rate of turn, rpm:
1 480
Feed height, m:
44
Nom.flow rate, m3/h:
995
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Ice-water pump IRG TKG 350/460-200/4 (995/44), 200 kW, 1480
Output pipe diameter | 350 |
Producer | BTS Engineering |
Nom.head, m | 44 |
Power supply | 3х380 V, 50 Hz |
Rate of turn, rpm | 1 480 |
Feed height, m | 44 |
Nom.flow rate, m3/h | 995 |
Power capacity, kW | 200 |
Pump capacity, cu.m/hour | 995 |
Explosion protection | No |
Impeller diameter, mm | 460 |
Material of flow channel | cast iron |
Suction capacity (NPSH), m | 5,5 |
Input pipe diameter | 350 |
Material | cast iron |
Serial number of the pump | TKG |
Country of Origin | China |
PumpType | in-line |
Drive Type | electric |
Installation Type | vertical |
Type of configuration | with engine |
Warranty, months | 12 |
Application | irrigation, irrigation systems, for water supply systems, firefighting, water supply, cooling towers |
Weight, kg | 2 100 |
Description Ice-water pump IRG TKG 350/460-200/4 (995/44), 200 kW, 1480
Application of industrial pumps of the TKG series: heat supply, irrigation, cooling and circulation, in central heating and hot water supply systems, fire extinguishing systems, booster systems, systems for water preparation, irrigation, hot and cold water supply in heating, cooling and air conditioning systems, for power boilers thanks to the reliable design of the pump, pumping clean liquids that do not contain abrasive impurities and are not aggressive to the materials from which the pump is made. The pump is ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. If it is intended to pump a liquid whose density and/or viscosity differs from the same parameters of water, then due to the change in hydraulic power, it is necessary to take into account the power of the electric motor required in this case.
Documentation Ice-water pump IRG TKG 350/460-200/4 (995/44), 200 kW, 1480
Download instructions, catalog for Ice-water pump IRG TKG 350/460-200/4 (995/44), 200 kW, 1480
