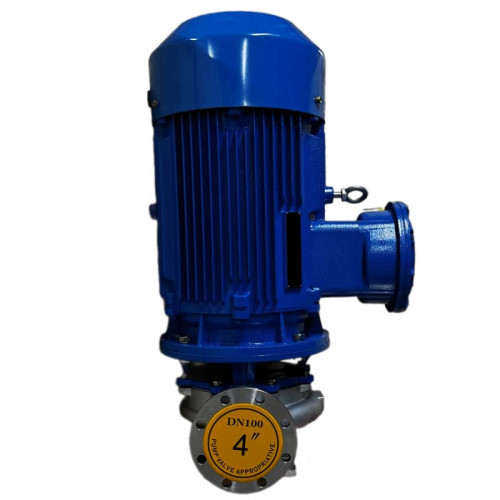

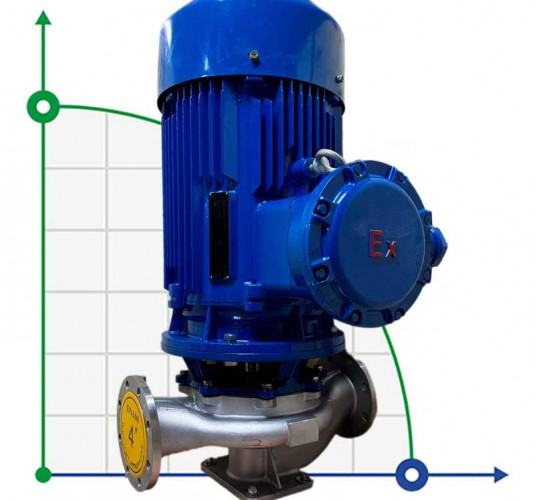

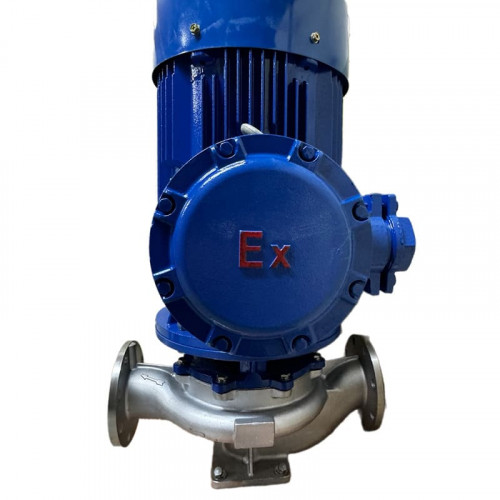

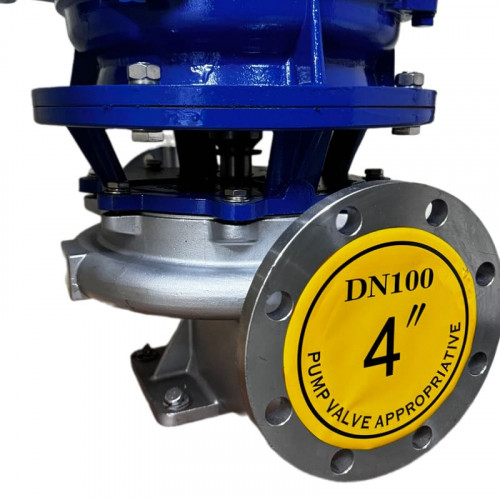

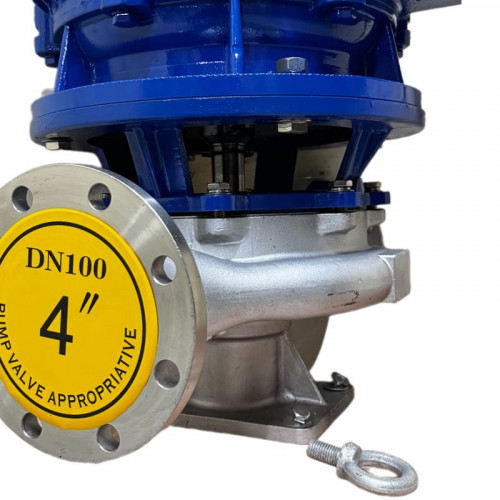

Stainless pump for bard IHG TKHGB 100/235-30/2 (93.5/70), 30 kW, AISI 304, 2900, Ex explosion-proof

Characteristics
Output pipe diameter:
100
Producer:
BTS Engineering
Nom.head, m:
70
Power supply:
3х380 V, 50 Hz
Max. head, m:
76
Rate of turn, rpm:
2 900
Feed height, m:
70
See all
Categories
Ukraine: In stock
Poland: Out of stock
Germany: Out of stock
Code: 1045564
$5,295.82 netto
$7,565.45
- 30%
Saving $2,269.63
Amount:
Favorite
Compare
We deliver anywhere in the world
Also buy with this product
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Stainless pump for bard IHG TKHGB 100/235-30/2 (93.5/70), 30 kW, AISI 304, 2900, Ex explosion-proof
Output pipe diameter
100
Producer
BTS Engineering
Nom.head, m
70
Power supply
3х380 V, 50 Hz
Max. head, m
76
Rate of turn, rpm
2 900
Feed height, m
70
Nom.flow rate, m3/h
93.5
Power capacity, kW
30
Pump capacity, cu.m/hour
93.5
Explosion protection
Yes
Max.flow rate, m3/h
130
Impeller diameter, mm
235
Material of flow channel
AISI 304 stainless steel
Suction capacity (NPSH), m
4
Input pipe diameter
100
Material
AISI 304 stainless steel
Serial number of the pump
TKHGB
Country of Origin
China
PumpType
in-line
Drive Type
electric
Installation Type
vertical
Type of configuration
with engine
Warranty, months
12
Application
caustic, flushing sip, abrasive liquids, must, bards, coagulant, paints, alkalis, food products, oils, acids
Weight, kg
335
Description Stainless pump for bard IHG TKHGB 100/235-30/2 (93.5/70), 30 kW, AISI 304, 2900, Ex explosion-proof
Industrial centrifugal in-line pumps of the TKHGB series with explosion-proof electric motor Ex. For pumping chemically aggressive liquids, salt solutions, sea water, alkalis, acid solutions, KAS mineral fertilizers, caustic solutions for SIP washing of equipment. For distilleries and breweries - for pumping mash, wort, it is used as a pump for DHFO, brews and bards. It is also ideal for pumping fescue oils, alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration installations, permeate and filtrate supply.
Documentation Stainless pump for bard IHG TKHGB 100/235-30/2 (93.5/70), 30 kW, AISI 304, 2900, Ex explosion-proof

Download instructions, catalog for Stainless pump for bard IHG TKHGB 100/235-30/2 (93.5/70), 30 kW, AISI 304, 2900, Ex explosion-proof
