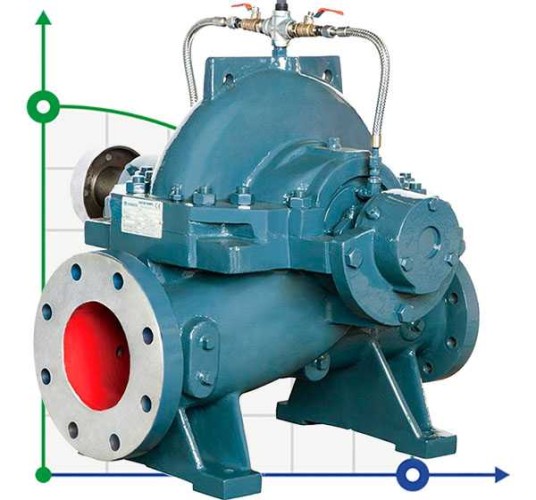

BSC 80-210A/B, (3000) Double Suction Split Case Pump

BSC 80-210A/B, (3000) Double Suction Split Case Pump
BSC 80-210A/B, (3000) Double Suction Split Case Pump
BSC 80-210A/B, (3000) Double Suction Split Case Pump
BSC 80-210A/B, (3000) Double Suction Split Case Pump
BSC 80-210A/B, (3000) Double Suction Split Case Pump
BSC 80-210A/B, (3000) Double Suction Split Case Pump
BSC 80-210A/B, (3000) Double Suction Split Case Pump
BSC 80-210A/B, (3000) Double Suction Split Case Pump
BSC 80-210A/B, (3000) Double Suction Split Case Pump
BSC 80-210A/B, (3000) Double Suction Split Case Pump
BSC 80-210A/B, (3000) Double Suction Split Case Pump
BSC 80-210A/B, (3000) Double Suction Split Case Pump
BSC 80-210A/B, (3000) Double Suction Split Case Pump
BSC 80-210A/B, (3000) Double Suction Split Case Pump
BSC 80-210A/B, (3000) Double Suction Split Case Pump
Brand:
BTS Engineering
0 Comment
Characteristics
Output pipe diameter:
80
Producer:
BTS Engineering
Impeller material:
cast iron
Nom.head, m:
55
Power supply:
3х380 V, 50 Hz
Rate of turn, rpm:
3 000
Feed height, m:
55
See all
Documentation
Categories
Pumps of a double entrance type D
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1023006
$3,328.46 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Products from the same category
BSCE 125-315(3000) - Double Suction Split Case Pump Without Engine BSCE 125-315(3000) - Double Suction Split Case Pump Without Engine
Pre-order only
$4,245.45
BSCE 200-430 (1500) - the pump unit of a bilateral entrance, 185 kW BSCE 200-430 (1500) - the pump unit of a bilateral entrance, 185 kW
Pre-order only
$21,627.49
BSCE 250-450 (1500) - the pump unit of a bilateral entrance, 250 kW BSCE 250-450 (1500) - the pump unit of a bilateral entrance, 250 kW
Pre-order only
$28,833.83
BSC 80-270A/B, (3000) Double Suction Split Case Pump BSC 80-270A/B, (3000) Double Suction Split Case Pump
Pre-order only
$3,460.39
BSC 80-370A/B, (3000) Double Suction Split Case Pump BSC 80-370A/B, (3000) Double Suction Split Case Pump
Pre-order only
$4,120.03
BSC 100-250A/B, (3000) Double Suction Split Case Pump BSC 100-250A/B, (3000) Double Suction Split Case Pump
Pre-order only
$3,833.01
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
$123.52
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
$2,156.03
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
$82.35
PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE
$365.65
Control panel for pump, 4 kW Control panel for pump, 4 kW
$427.46
PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$309.30
Control panel for pump, 1.5 kW Control panel for pump, 1.5 kW
$225.79
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
$131.26
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
$141.53
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
$164.70
Control panel for pump, 3 kW Control panel for pump, 3 kW
$415.77
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
$200.71
DN50 Thermodynamic flanged condensate trap PN16/1.0619 DN50 Thermodynamic flanged condensate trap PN16/1.0619
$483.25
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
$236.74
Control panel for pump, 5.5 kW Control panel for pump, 5.5 kW
$441.80
Control panel for pump, 2.2 kW Control panel for pump, 2.2 kW
$301.99
Control panel for pump, 7.5 kW Control panel for pump, 7.5 kW
$448.62
DN40 Thermodynamic flanged condensate trap PN16/1.0619 DN40 Thermodynamic flanged condensate trap PN16/1.0619
$422.86
Control panel for pump, 22 kW Control panel for pump, 22 kW
$1,724.41
Control panel for pump, 11 kW Control panel for pump, 11 kW
$463.25
Control panel for pump, 18.5 kW Control panel for pump, 18.5 kW
$748.87
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$62.01
Control panel for pump, 15 kW Control panel for pump, 15 kW
$620.95
PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
$22.57
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
$292.50
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features BSC 80-210A/B, (3000) Double Suction Split Case Pump
Output pipe diameter
80
Producer
BTS Engineering
Impeller material
cast iron
Nom.head, m
55
Power supply
3х380 V, 50 Hz
Rate of turn, rpm
3 000
Feed height, m
55

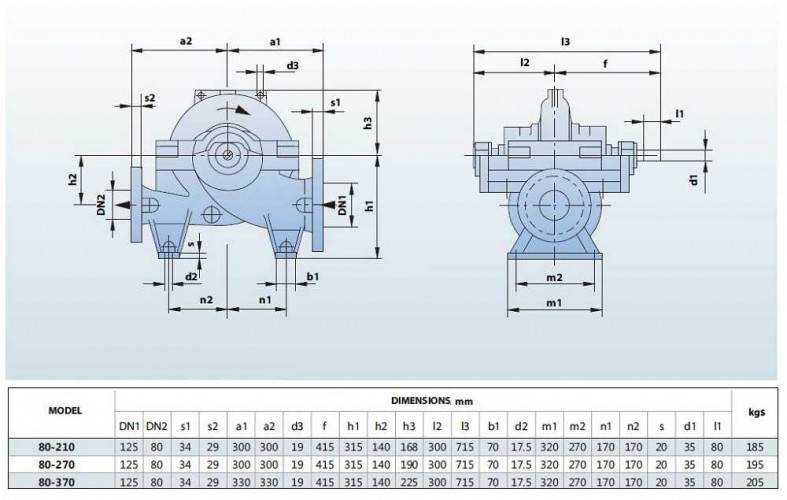

Dimensions, mm
600x715x455
Nom.flow rate, m3/h
164
Model
BSC 80-210A/B
Power capacity, kW
13,9 … 33,4
Pump capacity, cu.m/hour
164
Input pipe diameter
125
Material
cast iron
Serial number of the pump
BSC
Country of Origin
China
PumpType
two-way entrance
Drive Type
electric
Type of configuration
without engine
Warranty, months
12
Weight, kg
185
Height of transport volume, cbm
0,279
Description BSC 80-210A/B, (3000) Double Suction Split Case Pump

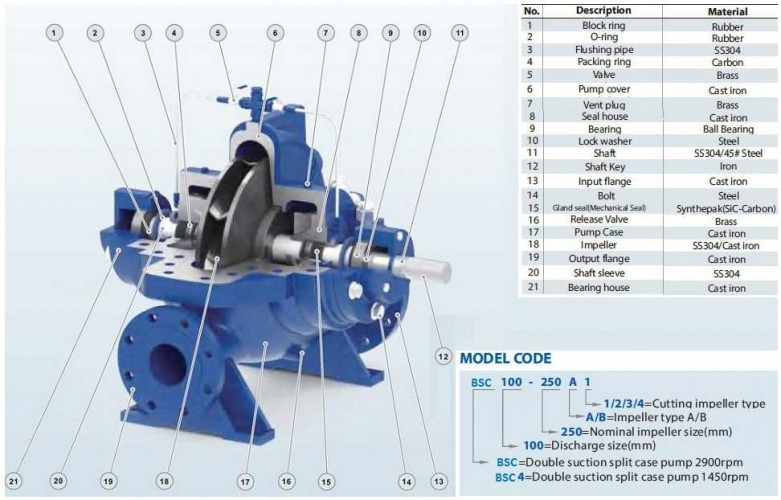

Double suction split case pump BSC DESCRIPTION: - Axially split volute pump casing design - Pump case with anti-corrosive coating HT250 - Double-entry radial impeller in AISI 304 or HT250 - Shaft protecting sleeves in the seal area - Mechanical seal and gland packing are both available - Grease-packed rolling element bearings sealed for life - Reliable complete with motor or diesel for fire fighting etc. USING LIMITS: - Liquid temperature between -10℃ and +120℃ - Ambient temperature between 0℃ and +50℃ - Max. working pressure 25 bar/Continuous S1
Documentation BSC 80-210A/B, (3000) Double Suction Split Case Pump

Download instructions, catalog for BSC 80-210A/B, (3000) Double Suction Split Case Pump
