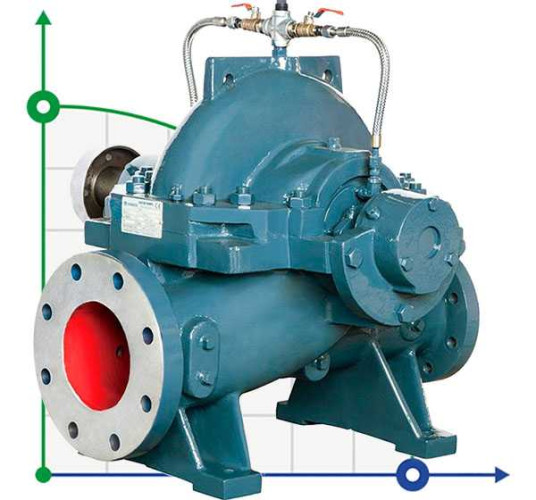

BSC4 100-250A/B, (1500) Double Suction Split Case Pump
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
100
Producer:
BTS Engineering
Impeller material:
cast iron
Nom.head, m:
18.8
Power supply:
3х380 V, 50 Hz
Rate of turn, rpm:
1 500
Feed height, m:
18.8
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features BSC4 100-250A/B, (1500) Double Suction Split Case Pump
Output pipe diameter | 100 |
Producer | BTS Engineering |
Impeller material | cast iron |
Nom.head, m | 18.8 |
Power supply | 3х380 V, 50 Hz |
Rate of turn, rpm | 1 500 |
Feed height, m | 18.8 |

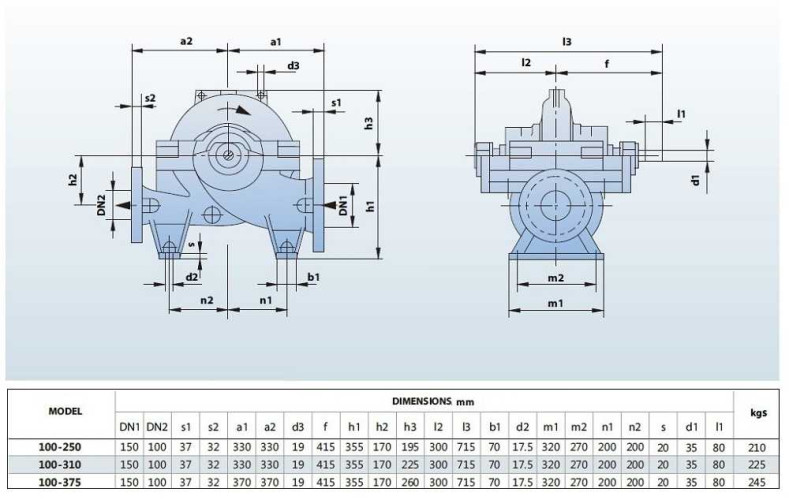

Dimensions, mm | 660x715x525 |
Nom.flow rate, m3/h | 144 |
Model | BSC4 100-250A/B |
Power capacity, kW | 3,9 … 10 |
Pump capacity, cu.m/hour | 144 |
Input pipe diameter | 150 |
Material | cast iron |
Serial number of the pump | BSC4 |
Country of Origin | China |
PumpType | two-way entrance |
Drive Type | electric |
Type of configuration | without engine |
Warranty, months | 12 |
Weight, kg | 210 |
Length of transport packing, cm | 69 |
Width of transport packing, cm | 75 |
Height of transport packing, cm | 66 |
Height of transport volume, cbm | 0,342 |
Description BSC4 100-250A/B, (1500) Double Suction Split Case Pump

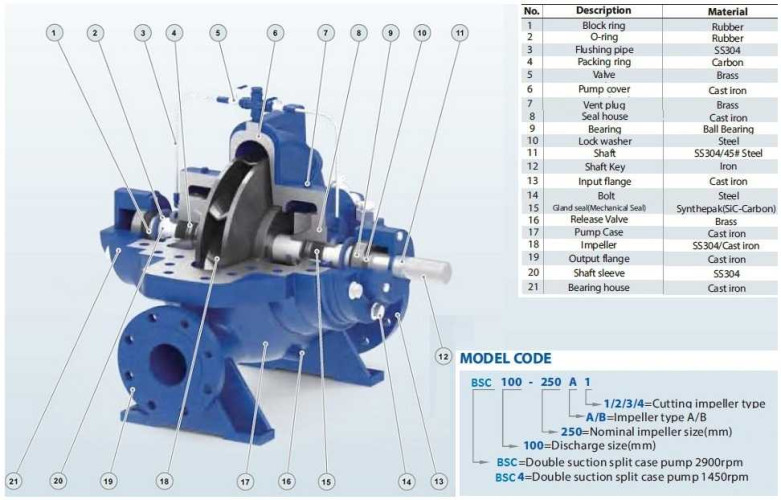

Double suction split case pump BSC4
DESCRIPTION:
- Axially split volute pump casing design
- Pump case with anti-corrosive coating HT250
- Double-entry radial impeller in AISI 304 or HT250
- Shaft protecting sleeves in the seal area
- Mechanical seal and gland packing are both available
- Grease-packed rolling element bearings sealed for life
- Reliable complete with motor or diesel for fire fighting etc.
USING LIMITS:
- Liquid temperature between -10℃ and +120℃
- Ambient temperature between 0℃ and +50℃
- Max. working pressure 25 bar/Continuous S1
Documentation BSC4 100-250A/B, (1500) Double Suction Split Case Pump
Download instructions, catalog for BSC4 100-250A/B, (1500) Double Suction Split Case Pump
