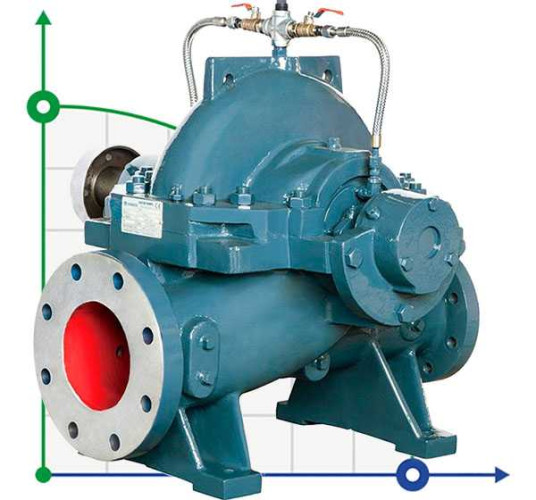

BSC4 125-290A/B, (1500) Double Suction Split Case Pump

BSC4 125-290A/B, (1500) Double Suction Split Case Pump
BSC4 125-290A/B, (1500) Double Suction Split Case Pump
BSC4 125-290A/B, (1500) Double Suction Split Case Pump
BSC4 125-290A/B, (1500) Double Suction Split Case Pump
BSC4 125-290A/B, (1500) Double Suction Split Case Pump
BSC4 125-290A/B, (1500) Double Suction Split Case Pump
BSC4 125-290A/B, (1500) Double Suction Split Case Pump
BSC4 125-290A/B, (1500) Double Suction Split Case Pump
BSC4 125-290A/B, (1500) Double Suction Split Case Pump
BSC4 125-290A/B, (1500) Double Suction Split Case Pump
BSC4 125-290A/B, (1500) Double Suction Split Case Pump
BSC4 125-290A/B, (1500) Double Suction Split Case Pump
BSC4 125-290A/B, (1500) Double Suction Split Case Pump
BSC4 125-290A/B, (1500) Double Suction Split Case Pump
BSC4 125-290A/B, (1500) Double Suction Split Case Pump
Brand:
BTS Engineering
0 Comment
Characteristics
Output pipe diameter:
125
Producer:
BTS Engineering
Impeller material:
cast iron
Nom.head, m:
27
Power supply:
3х380 V, 50 Hz
Rate of turn, rpm:
1 500
Feed height, m:
27
See all
Documentation
Categories
Pumps of a double entrance type D
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1023031
$5,205.67 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Products from the same category
BSC4 100-310A/B, (1500) Double Suction Split Case Pump BSC4 100-310A/B, (1500) Double Suction Split Case Pump
Pre-order only
$4,120.03
BSC4 100-375A/B, (1500) Double Suction Split Case Pump BSC4 100-375A/B, (1500) Double Suction Split Case Pump
Pre-order only
$4,235.82
BSC4 125-230A/B, (1500) Double Suction Split Case Pump BSC4 125-230A/B, (1500) Double Suction Split Case Pump
Pre-order only
$4,747.34
BSC4 125-365A/B, (1500) Double Suction Split Case Pump BSC4 125-365A/B, (1500) Double Suction Split Case Pump
Pre-order only
$5,346.83
BSC4 125-500A/B, (1500) Double Suction Split Case Pump BSC4 125-500A/B, (1500) Double Suction Split Case Pump
Pre-order only
$6,277.34
BSC4 150-290A/B, (1500) Double Suction Split Case Pump BSC4 150-290A/B, (1500) Double Suction Split Case Pump
Pre-order only
$5,661.63
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
$123.52
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
$2,156.03
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
$82.35
PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE
$365.65
Control panel for pump, 4 kW Control panel for pump, 4 kW
$427.46
PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$309.30
Control panel for pump, 1.5 kW Control panel for pump, 1.5 kW
$225.79
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
$131.26
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
$141.53
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
$164.70
Control panel for pump, 3 kW Control panel for pump, 3 kW
$415.77
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
$200.71
DN50 Thermodynamic flanged condensate trap PN16/1.0619 DN50 Thermodynamic flanged condensate trap PN16/1.0619
$483.25
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
$236.74
Control panel for pump, 5.5 kW Control panel for pump, 5.5 kW
$441.80
Control panel for pump, 2.2 kW Control panel for pump, 2.2 kW
$301.99
Control panel for pump, 7.5 kW Control panel for pump, 7.5 kW
$448.62
DN40 Thermodynamic flanged condensate trap PN16/1.0619 DN40 Thermodynamic flanged condensate trap PN16/1.0619
$422.86
Control panel for pump, 22 kW Control panel for pump, 22 kW
$1,724.41
Control panel for pump, 11 kW Control panel for pump, 11 kW
$463.25
Control panel for pump, 18.5 kW Control panel for pump, 18.5 kW
$748.87
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$62.01
Control panel for pump, 15 kW Control panel for pump, 15 kW
$620.95
PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
$22.57
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
$292.50
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features BSC4 125-290A/B, (1500) Double Suction Split Case Pump
Output pipe diameter
125
Producer
BTS Engineering
Impeller material
cast iron
Nom.head, m
27
Power supply
3х380 V, 50 Hz
Rate of turn, rpm
1 500
Feed height, m
27

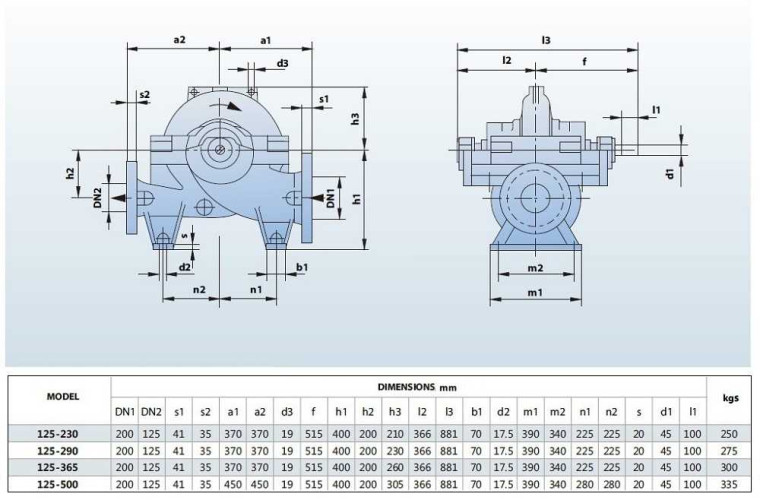

Dimensions, mm
740x881x600
Nom.flow rate, m3/h
269
Model
BSC4 125-290A/B
Power capacity, kW
8,6 … 25,2
Pump capacity, cu.m/hour
269
Input pipe diameter
200
Material
cast iron
Serial number of the pump
BSC4
Country of Origin
China
PumpType
two-way entrance
Drive Type
electric
Type of configuration
without engine
Warranty, months
12
Weight, kg
275
Length of transport packing, cm
77
Width of transport packing, cm
91
Height of transport packing, cm
74
Height of transport volume, cbm
0,519
Description BSC4 125-290A/B, (1500) Double Suction Split Case Pump

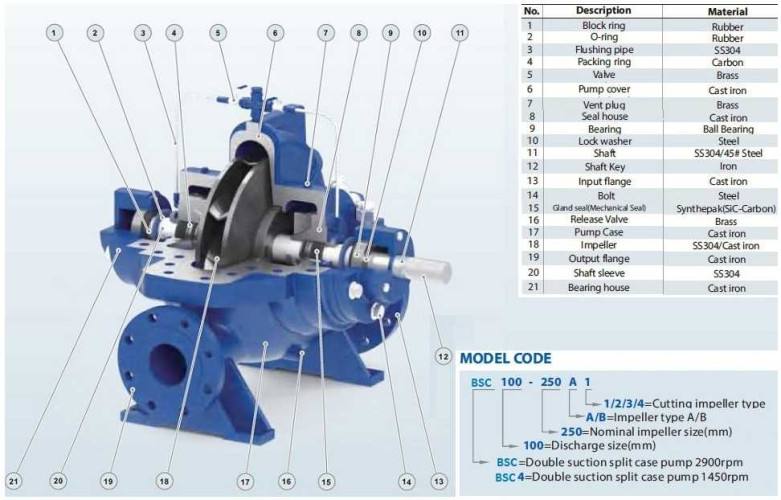

Double suction split case pump BSC4 DESCRIPTION: - Axially split volute pump casing design - Pump case with anti-corrosive coating HT250 - Double-entry radial impeller in AISI 304 or HT250 - Shaft protecting sleeves in the seal area - Mechanical seal and gland packing are both available - Grease-packed rolling element bearings sealed for life - Reliable complete with motor or diesel for fire fighting etc. USING LIMITS: - Liquid temperature between -10℃ and +120℃ - Ambient temperature between 0℃ and +50℃ - Max. working pressure 25 bar/Continuous S1
Documentation BSC4 125-290A/B, (1500) Double Suction Split Case Pump

Download instructions, catalog for BSC4 125-290A/B, (1500) Double Suction Split Case Pump
