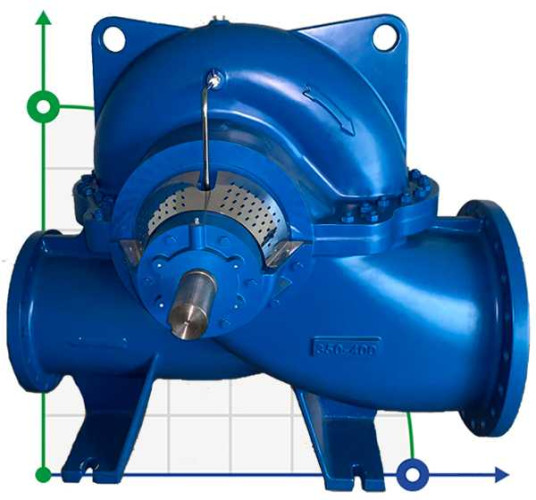

BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine

BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
Brand:
ERDURO
0 Comment
Characteristics
Output pipe diameter:
DN200
Producer:
ERDURO
Max. head, m:
33
Rate of turn, rpm:
1 500
Feed height, m:
33
Dimensions, mm:
1145x950x815
Model:
BSCE 200-315
See all
Documentation
Categories
Pumps of a double entrance type D
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1023638
$6,954.22 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Products from the same category
BSCE 125-350(1500) - Double Suction Split Case Pump Without Engine BSCE 125-350(1500) - Double Suction Split Case Pump Without Engine
Pre-order only
$5,123.90
BSCE 125-480(1500) - Double Suction Split Case Pump Without Engine BSCE 125-480(1500) - Double Suction Split Case Pump Without Engine
Pre-order only
$5,607.54
BSCE 150-460(1500) - Double Suction Split Case Pump Without Engine BSCE 150-460(1500) - Double Suction Split Case Pump Without Engine
Pre-order only
$6,929.42
BSCE 200-500(1500) - Double Suction Split Case Pump Without Engine BSCE 200-500(1500) - Double Suction Split Case Pump Without Engine
Pre-order only
$10,217.97
BSCE 250-450(1500) - Double Suction Split Case Pump Without Engine BSCE 250-450(1500) - Double Suction Split Case Pump Without Engine
Pre-order only
$11,458.02
BSCE 250-600(1500) - Double Suction Split Case Pump Without Engine BSCE 250-600(1500) - Double Suction Split Case Pump Without Engine
Pre-order only
$15,716.35
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
$135.86
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
$2,371.63
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
$90.59
PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE
$402.21
Control panel for pump, 4 kW Control panel for pump, 4 kW
$470.20
PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$340.22
Control panel for pump, 1.5 kW Control panel for pump, 1.5 kW
$248.38
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
$144.39
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
$155.70
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
$181.17
Control panel for pump, 3 kW Control panel for pump, 3 kW
$457.34
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
$220.78
DN50 Thermodynamic flanged condensate trap PN16/1.0619 DN50 Thermodynamic flanged condensate trap PN16/1.0619
$531.58
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
$260.42
Control panel for pump, 5.5 kW Control panel for pump, 5.5 kW
$485.99
Control panel for pump, 2.2 kW Control panel for pump, 2.2 kW
$332.18
Control panel for pump, 7.5 kW Control panel for pump, 7.5 kW
$493.49
DN40 Thermodynamic flanged condensate trap PN16/1.0619 DN40 Thermodynamic flanged condensate trap PN16/1.0619
$465.14
Control panel for pump, 22 kW Control panel for pump, 22 kW
$1,896.86
Control panel for pump, 11 kW Control panel for pump, 11 kW
$509.57
Control panel for pump, 18.5 kW Control panel for pump, 18.5 kW
$823.76
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$68.21
Control panel for pump, 15 kW Control panel for pump, 15 kW
$683.06
PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
$24.82
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
$321.75
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
Output pipe diameter
DN200
Producer
ERDURO
Max. head, m
33
Rate of turn, rpm
1 500
Feed height, m
33
Dimensions, mm
1145x950x815
Model
BSCE 200-315
Power capacity, kW
30 … 75
Pump capacity, cu.m/hour
1080
Max.flow rate, m3/h
1080
Input pipe diameter
DN250
Material
cast iron
Serial number of the pump
BSCE
Country of Origin
Turkey
PumpType
two-way entrance
Drive Type
electric
Type of configuration
without engine
Warranty, months
12
Weight, kg
570
Description BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine

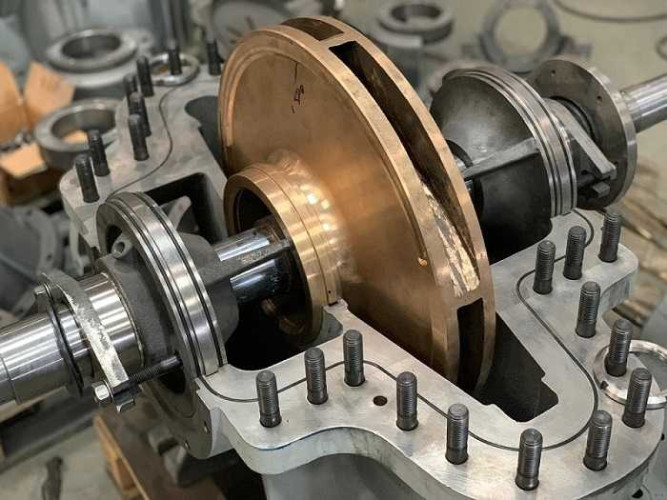

Split Case Centrifugal Pumps BCSE - Suction and discharge flanges are on the same axis at the bottom casing. - Split case design permits easy disassembly of the rotor group for maintenance or repair without distorting pump alignment and suction and discharge piping. - Impeller is double suction. - This feature increases pump suction performance in addition it provides the balance of hydraulic axial forces. - Flanges are conforming to ISO 7005-2 / PN 16 or PN 25. - All impellers are balanced statically and dynamically according to ISO 1940 class 6.3. - Sealing is provided by gland packing, also it can be mechanical seal according to customer request.
Documentation BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine

Download instructions, catalog for BSCE 200-315(1500) - Double Suction Split Case Pump Without Engine
