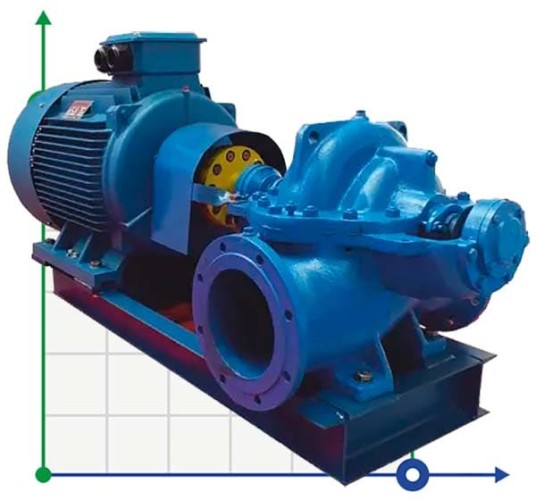

BSCE 200-430 (1500) - the pump unit of a bilateral entrance, 185 kW
Brand:
ERDUROCharacteristics
Output pipe diameter:
DN200
Producer:
ERDURO
Housing material:
Сast iron
Nom.head, m:
54
Max. head, m:
67
Rate of turn, rpm:
1 500
Feed height, m:
54
See all
Documentation
Categories
Favorite
Compare

Products from the same category
Also buy with this product




Features BSCE 200-430 (1500) - the pump unit of a bilateral entrance, 185 kW
Output pipe diameter | DN200 |
Producer | ERDURO |
Housing material | Сast iron |
Nom.head, m | 54 |
Max. head, m | 67 |
Rate of turn, rpm | 1 500 |
Feed height, m | 54 |
Nom.flow rate, m3/h | 850 |
Power capacity, kW | 185 |
Pump capacity, cu.m/hour | 850 |
Explosion protection | No |
Max.flow rate, m3/h | 1100 |
Impeller diameter, mm | 426 |
Max.temperature, C | 110 |
Input pipe diameter | DN250 |
Country of Origin | Turkey |
PumpType | two-way entrance |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | with engine |
Weight, kg | 1740 |
Description BSCE 200-430 (1500) - the pump unit of a bilateral entrance, 185 kW
Centrifugal pumps of a bilateral entrance of the BSCE series.
Application: in water supply systems, treatment plants, pressure boosting plants, fire extinguishing installations, irrigation, for water circulation in air-conditioning systems, agriculture.
Peculiarities:
• Suction and discharge flanges are on the same axis at the bottom of the body.
• Split housing design allows easy dismantling of the rotor group for maintenance or repair without disturbing the alignment of the pump and suction and discharge pipelines.
• Double suction impeller.
• This feature increases the suction capacity of the pump and also balances the hydraulic axial forces.
• Flanges conform to ISO 7005-2 / PN 16 or PN 25.
• All impellers are statically and dynamically balanced according to class 6.3 ISO 1940.
• Consolidation is carried out by omental stuffing, at the request of the customer can be mechanical.
