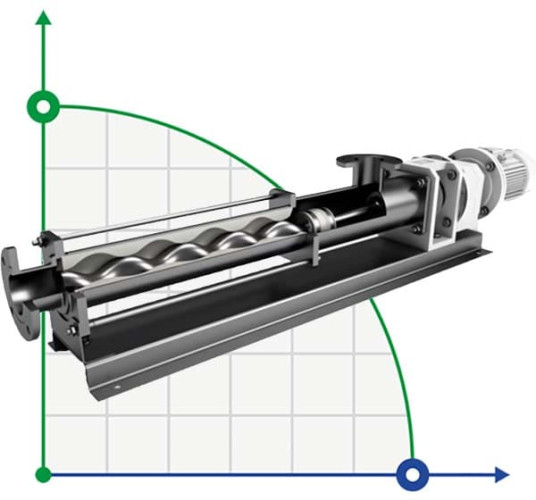

SOLTEC ONV-3-00-Y screw pump for pates, meat emulsion, sausage stuffing
SOLTEC ONV-3-00-Y screw pump for pates, meat emulsion, sausage stuffing
Brand:
SOLTECCharacteristics
Producer:
SOLTEC
Power supply:
3х380 V, 50 Hz
Rate of turn, rpm:
380
Nom.flow rate, m3/h:
2
Power capacity, kW:
1,5
Pump capacity, cu.m/hour:
2
Explosion protection:
No
See all
Documentation
Categories
Favorite
Compare
Products from the same category
SOLTEC ONV-10-02 screw pump for slurry, clay, ceramic suspensions
Pre-order only
$3,694.77
SOLTEC ONV-20-00 screw pump for squash caviar, sauce, mayonnaise
Pre-order only
$4,515.89
SOLTEC ONV-20-01 screw pump for feeding primary product berries, crushed fruits and vegetables
Pre-order only
$4,515.89
SOLTEC BN038S01FYL screw pump for dough, fillings: potatoes with mushrooms, minced meat with onions
Pre-order only
$3,540.34
SOLTEC BN038S02FYLP screw pump for pates, meat emulsion, minced sausage
Pre-order only
$4,306.93
Screw pump Nova Rotors JHS-T, D020, 1L1, 4.9m3/h, 60m, 1400rpm
Pre-order only
Price on request
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures SOLTEC ONV-3-00-Y screw pump for pates, meat emulsion, sausage stuffing
Producer | SOLTEC |
Power supply | 3х380 V, 50 Hz |
Rate of turn, rpm | 380 |
Nom.flow rate, m3/h | 2 |
Power capacity, kW | 1,5 |
Pump capacity, cu.m/hour | 2 |
Explosion protection | No |
Nom.pressure, Mpa | 0,6 |
Country of Origin | Ukraine |
PumpType | screw type |
Drive Type | electric |
Application | blood pumping, meat emulsion, minced sausage, test, fillings, squash caviar, tomato paste, animal fat, dark oil products, intestinal sac, minced meat, minced meat and bone, pâtés, guilt, slip, clay, light oil products, juice concentrates, applesauce, high viscosity pastes and suspensions, industrial explosives, emulsions, surfactants, pulp, slimes, sauce, mayonnaise, ceramic suspensions |
Description SOLTEC ONV-3-00-Y screw pump for pates, meat emulsion, sausage stuffing
The working pair of the screw pump consists of a metal rotor (a single-entry external spiral) and a rubber stator (a two-entry internal spiral), while hermetically sealed cavities appear along the line of closure of the rotor and the stator, which, when the rotor rotates, move towards the injection. The number of steps of the working (screw) pair determines the potential pressure that the screw pump can develop, and the volume of closed cavities and the speed of rotation of the rotor determines its performance.
Thus, the screw pump is a self-priming pump of the volumetric type and allows adjustment of performance in a wide range without loss of nominal pressure. These features of the screw pump allow you to work with viscous media, media with solid inclusions and sediments, multiphase media with a gas component, etc.
Documentation SOLTEC ONV-3-00-Y screw pump for pates, meat emulsion, sausage stuffing
Download instructions, catalog for SOLTEC ONV-3-00-Y screw pump for pates, meat emulsion, sausage stuffing
