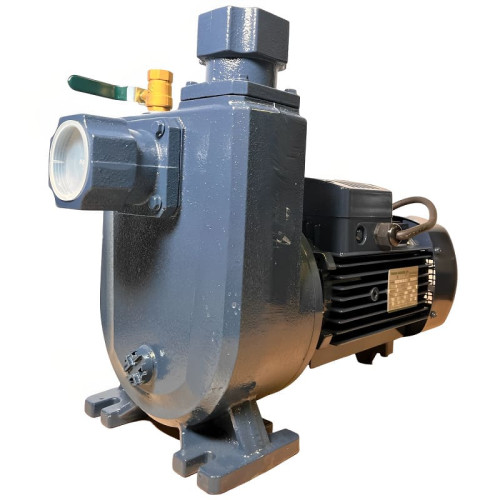

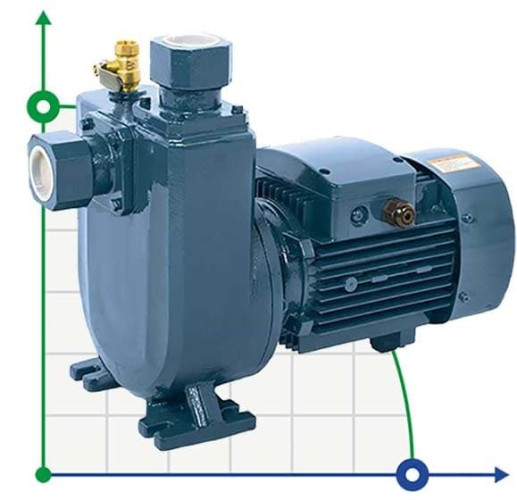

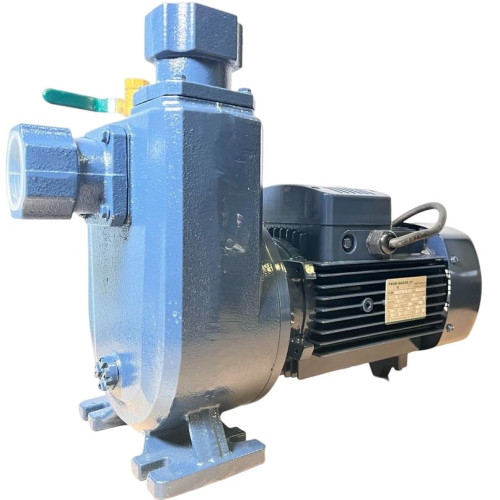

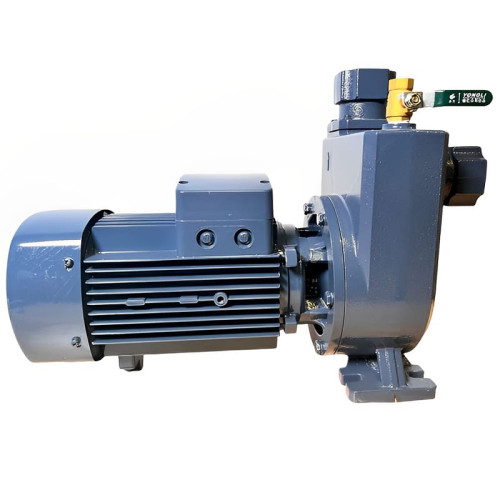

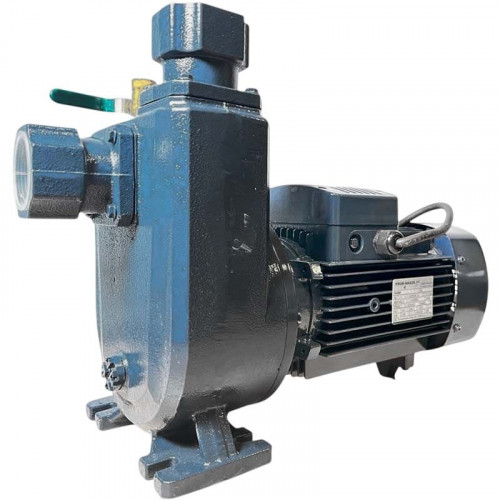

BXZ W25-35-3kW, 2900, 380V self-priming sewage pump
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
50
Producer:
BTS Engineering
Housing material:
Сast iron
Impeller material:
cast iron
Nom.head, m:
22
Power supply:
3х380 V, 50 Hz
Max. head, m:
35
See all
Documentation
Categories
Favorite
Compare

Products from the same category
Also buy with this product

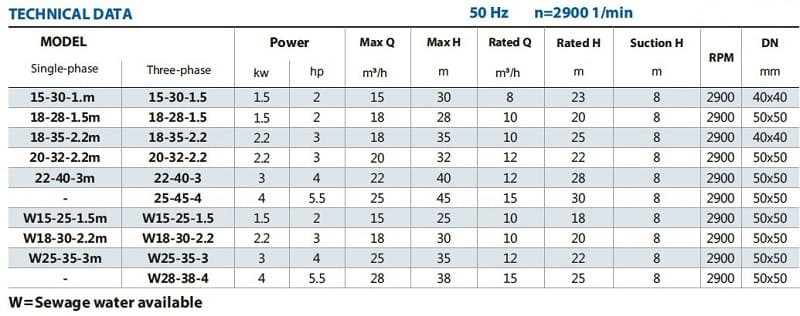

Features BXZ W25-35-3kW, 2900, 380V self-priming sewage pump
Output pipe diameter | 50 |
Producer | BTS Engineering |
Housing material | Сast iron |
Impeller material | cast iron |
Nom.head, m | 22 |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 35 |
Rate of turn, rpm | 2 900 |
Feed height, m | 35 |
Nom.flow rate, m3/h | 12 |
Power capacity, kW | 3 |
Protection | IP55 |

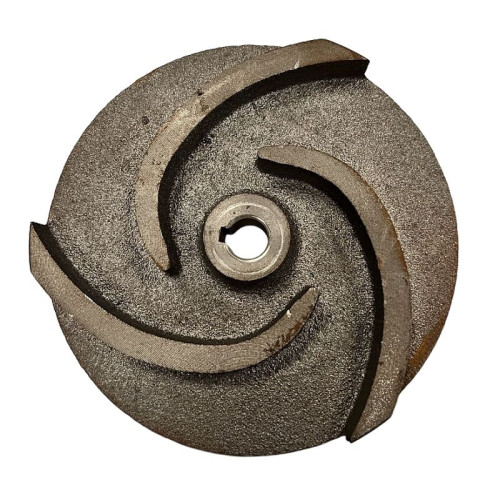

Impeller type | open impeller |
Pump capacity, cu.m/hour | 25 |
Explosion protection | No |

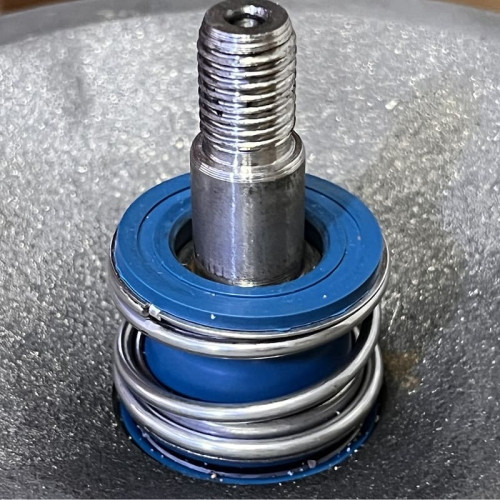

Seal | Mechanical Seal, SiC/Carbon/SS304 |
Max.flow rate, m3/h | 25 |
Max.temperature, C | 120 |
Shaft material | chrome steel |
Suction capacity (NPSH), m | 8 |
Input pipe diameter | 50 |
Material | cast iron |
Serial number of the pump | BXZ |
Country of Origin | China |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | with engine |
Weight, kg | 50 |
Height of transport volume, cbm | 0,077 |
Description BXZ W25-35-3kW, 2900, 380V self-priming sewage pump

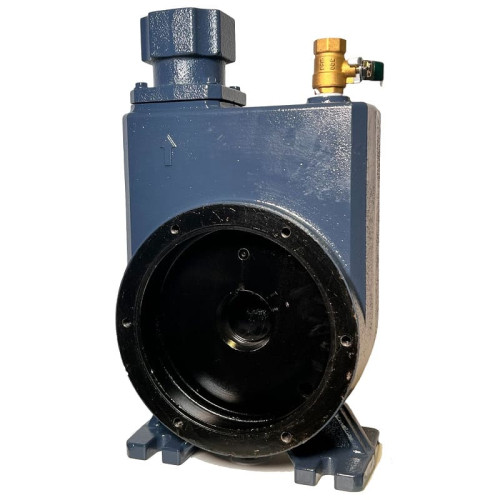

The BXZ self-priming centrifugal pump is recommended for use in water supply systems, washing systems, pressure systems, irrigation, pumping of liquids. The pump body is made of cast iron. The material of the impeller is cast iron.
Documentation BXZ W25-35-3kW, 2900, 380V self-priming sewage pump
Download instructions, catalog for BXZ W25-35-3kW, 2900, 380V self-priming sewage pump
