Sewage lifting unit with submersible pump and control panel AIZL-SC 1100W, 18/17.5, 1.1 kW, 220V, 2800 rpm
Brand:
AIZLCharacteristics
Producer:
AIZL
Power supply:
1х220 V, 50 Hz
Max. head, m:
17.5
Rate of turn, rpm:
2 800
Feed height, m:
17.5
Dimensions, mm:
500x500x500
Power capacity, kW:
1,1
See all
Documentation
Categories
Favorite
Compare

Products from the same category
Also buy with this product




Features Sewage lifting unit with submersible pump and control panel AIZL-SC 1100W, 18/17.5, 1.1 kW, 220V, 2800 rpm
Producer | AIZL |
Power supply | 1х220 V, 50 Hz |
Max. head, m | 17.5 |
Rate of turn, rpm | 2 800 |
Feed height, m | 17.5 |
Dimensions, mm | 500x500x500 |
Power capacity, kW | 1,1 |
Tank volume | 65 |

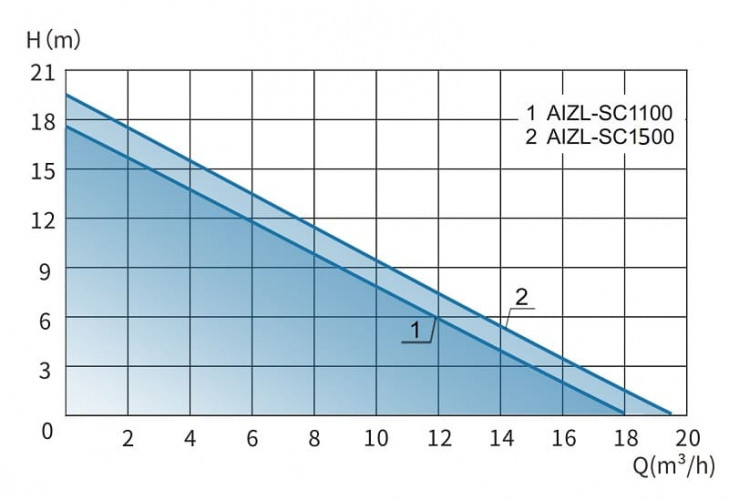

Pump capacity, cu.m/hour | 18 |
Flow rate, l/min | 300 |
Max.flow rate, m3/h | 18 |
Max.temperature, C | 60 |
Type | каналізаційна установка |
Serial number of the controller | AIZL-ICM |
Country of Origin | China |
Drive Type | electric |
Weight, kg | 46 |
Description Sewage lifting unit with submersible pump and control panel AIZL-SC 1100W, 18/17.5, 1.1 kW, 220V, 2800 rpm

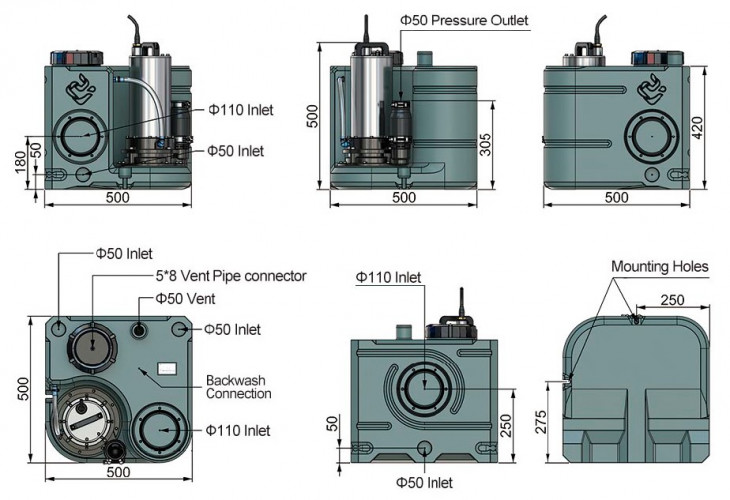

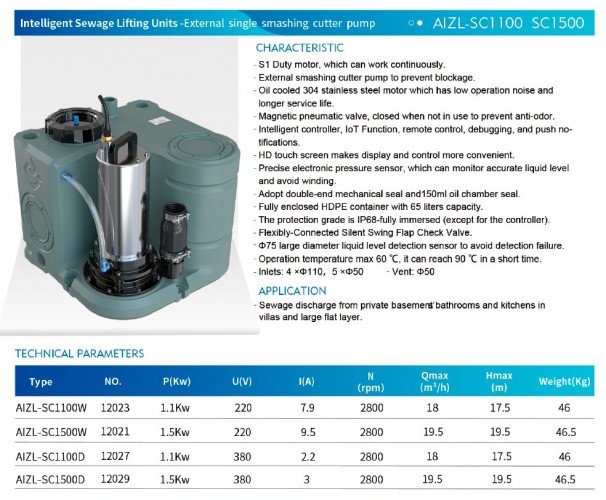

Application: Drainage of sewage from bathrooms and kitchens of private basements in villas and large apartment buildings. Features: - S1 type motor, which can work continuously. - External cutting pump to prevent clogging. - 304 stainless steel oil-cooled motor, which has low noise and longer service life. - Magnetic pneumatic valve, closed when not in use, to prevent unpleasant odor. - Intelligent controller, IoT function, remote control, debugging and push notification. - HD touch screen makes display and operation more convenient. - Precise electronic pressure sensor, which can control the accurate liquid level and avoid winding. - Double-sided mechanical seal and 150ml oil chamber seal. - Fully enclosed HDPE container with a capacity of 65 liters. - IP68 protection grade - full immersion (except the controller). - Flexible connection silent rotary check valve - Φ75 large diameter liquid level detection sensor to avoid detection error. - Working temperature max. 60℃, can reach 90℃ in a short time. - Inlet holes: 4×Φ110, 5×Φ50 - Vent hole: Φ50
Documentation Sewage lifting unit with submersible pump and control panel AIZL-SC 1100W, 18/17.5, 1.1 kW, 220V, 2800 rpm
Download instructions, catalog for Sewage lifting unit with submersible pump and control panel AIZL-SC 1100W, 18/17.5, 1.1 kW, 220V, 2800 rpm
Sewage lifting unit with submersible pump and control panel AIZL-SC 1100W, 18/17.5, 1.1 kW, 220V, 2800 rpm reviews
