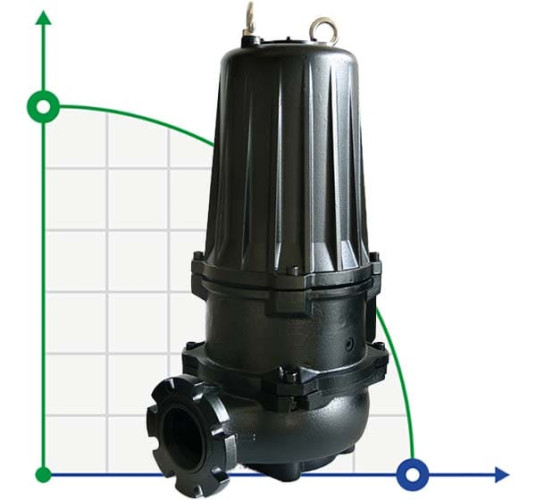

Submersible pump Dreno ATH-EX 100-2/400 with centrifugal two-channel impeller
Brand:
DrenoCharacteristics
Output pipe diameter:
DN100
Producer:
Dreno
Housing material:
Сast iron
Impeller material:
cast iron
Power supply:
3х380 V, 50 Hz
Maximal altitude of immersion under the water surface, m:
20
Max. head, m:
72.5
See all
Documentation
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Submersible pump Dreno ATH-EX 100-2/400 with centrifugal two-channel impeller
Output pipe diameter | DN100 |
Producer | Dreno |
Housing material | Сast iron |
Impeller material | cast iron |
Power supply | 3х380 V, 50 Hz |
Maximal altitude of immersion under the water surface, m | 20 |
Max. head, m | 72.5 |
Rate of turn, rpm | 2 850 |
Feed height, m | 72.5 |
Power capacity, kW | 40 |
Protection | IP68 |
Max.diameter of solid inclusions, mm | 45 |
Impeller type | centrifugal two-channel impeller |
Pump capacity, cu.m/hour | 216 |
Explosion protection | Yes |
Seal | Double Mechanical Seal, SIC/SIC/Viton |
Max.flow rate, m3/h | 216 |
Max.temperature, C | 40 |
Shaft material | AISI 420 |
ATEX standard | II 2G Ex db IIB T4 Gb; II 2G Ex h IIB T4 Gb; II 2G 0° Ta 40° |
Serial number of the pump | ATH |
Country of Origin | Italy |
PumpType | submersible drainage and fecal |
Drive Type | electric |
Installation Type | vertical |
Weight, kg | 370 |
Description Submersible pump Dreno ATH-EX 100-2/400 with centrifugal two-channel impeller
Pump application: the ATH 2 pole series is used to move large volumes of clean water or light wastewater with high productivity.
Areas of application: water treatment plants, industrial enterprises, airports, hospitals, civil applications and agricultural irrigation.

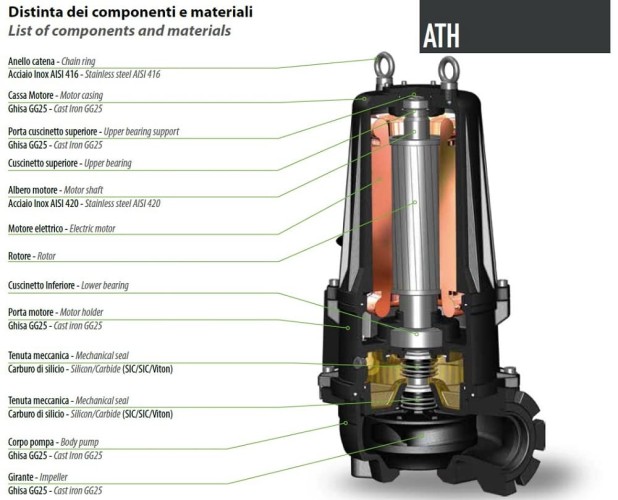

Feature: all main components are made of GG25 cast iron. Two separate mechanical seals (the engine side in the oil chamber, the impeller side in contact with the liquid) and high-quality parts ensure perfect operation and reliability of the product.
Motor range: 2-pole short-circuited rotor motor; thermal protection T1 and T2 integrated in the motor winding (connected to a three-pole Contactor on the control panel); Class F insulation (155°C); protection class IP68.
Engine cooling: engine cooling is provided by the liquid in which the pump is immersed.
Limits of use: maximum permissible liquid temperature: 40°C when the pump is fully submerged; on request, special version (except ATEX) to withstand liquid temperatures up to 60 ° C with the pump fully submerged, maintenance-free S1; maximum immersion depth: 20 m; permissible pH value: 6-10; hydraulic characteristics suitable for liquids with a density <1.1 kg / DM3; permissible voltage: 380V ±5%; permissible frequency: 50 Hz ±2%.
Symbols:
T-3 phase 380V
EX-in explosion-proof design
2850 rpm./ min. - 2 poles 50 Hz
Horizontal pressure pipe
