Submersible pump Dreno DNB 65-2/220 T with two-channel S-shaped flow impeller

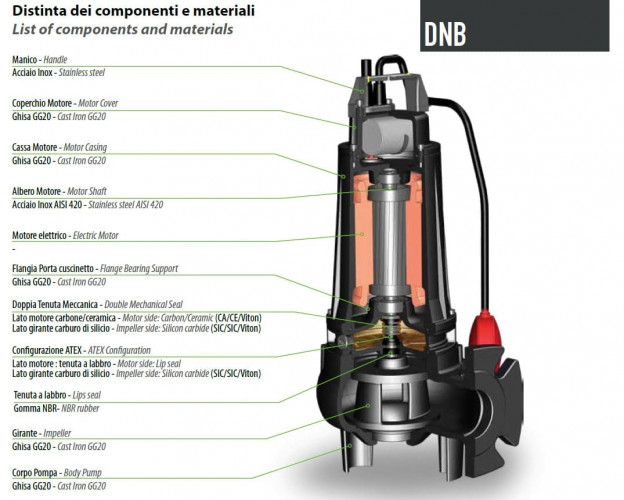

Pump application: The DNB series is used for pumping and draining clear liquids and wastewater. The special impeller of S-Flow channels allows to pass short rigid fibers and is especially suitable for sewage and treatment facilities. 4-pole versions are designed to work in conditions of continuous operation S1 and have a high noise level. Characteristics: the main components are made of GG20 cast iron. Double mechanical seals in the "back to back" configuration, located in the oil chamber, guarantee a long service life of the product. Motor range: short-rotor motor with 2 and 4 poles; thermal protection built into the winding (in DNB ...- 2/220 and DNB models with 4 poles, the thermal protection conductors T1 and T2 must be connected to the control panel); insulation class F 155 ° C; degree of protection of the IP68 engine. Engine cooling: engine cooling is provided by the liquid in which the pump is immersed. Limits of use: maximum permissible liquid temperature: 40 ° C with the pump completely submerged; maximum depth of immersion: 20 m; permissible pH value: 6-10; hydraulic characteristics are suitable for liquids with a density of <1.1 kg / dm3; permissible voltage: 220V / 380V ± 5%; permissible frequency: 50 Hz ± 2%. Symbols: G-float M-1 Phase 220V T-3 phase 380V M/G-single-phase with float sensor T/G-three-phase with float sensor 2-4 poles 50 Hz Horizontal pressure pipe
