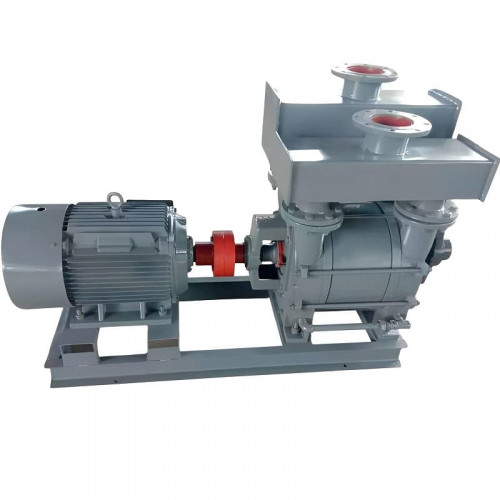

Vacuum pump 2BE202 Ex 22kW 380V 50Hz

Vacuum pump 2BE202 Ex 22kW 380V 50Hz
Vacuum pump 2BE202 Ex 22kW 380V 50Hz
Vacuum pump 2BE202 Ex 22kW 380V 50Hz
Vacuum pump 2BE202 Ex 22kW 380V 50Hz
Vacuum pump 2BE202 Ex 22kW 380V 50Hz
Vacuum pump 2BE202 Ex 22kW 380V 50Hz
Vacuum pump 2BE202 Ex 22kW 380V 50Hz
Vacuum pump 2BE202 Ex 22kW 380V 50Hz
Vacuum pump 2BE202 Ex 22kW 380V 50Hz
Vacuum pump 2BE202 Ex 22kW 380V 50Hz
Vacuum pump 2BE202 Ex 22kW 380V 50Hz
Vacuum pump 2BE202 Ex 22kW 380V 50Hz
Brand:
BTS Engineering
0 Comment
Characteristics
Output pipe diameter:
DN100
Producer:
BTS Engineering
Housing material:
Сast iron
Flow, l/min:
15
Power supply:
3х380 V, 50 Hz
Rate of turn, rpm:
970
Explosion protection:
Yes
See all
Documentation
Categories
Vacuum pumps
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Italy: Out of stock
Code: 1050957
$7,176.76 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Products from the same category
Vacuum pump for brago distillation unit 2BE1-152-0, 340-535 m3/h, without motor Vacuum pump for brago distillation unit 2BE1-152-0, 340-535 m3/h, without motor
Pre-order only
$3,523.13
Vacuum pump for brago distillation 2BE1-202-0, 590-950 m3/h, without motor Vacuum pump for brago distillation 2BE1-202-0, 590-950 m3/h, without motor
Pre-order only
$5,186.83
GMVP 200/085 monoblock vacuum pump GMVP 200/085 monoblock vacuum pump
Pre-order only
$2,003.98
Vacuum pump for molecular sieve regeneration GMVP 230/120 with 1450 rpm 50Hz 5.5 kW motor in explosion-proof design Vacuum pump for molecular sieve regeneration GMVP 230/120 with 1450 rpm 50Hz 5.5 kW motor in explosion-proof design
Pre-order only
$6,156.18
Vacuum bioethanol pump ESV 220/90, 195 m3/h, 5.5 kW, 1450 rpm, Ex Vacuum bioethanol pump ESV 220/90, 195 m3/h, 5.5 kW, 1450 rpm, Ex
Pre-order only
$5,237.85
DLV-180 AISI304 water ring vacuum pump (with motor) DLV-180 AISI304 water ring vacuum pump (with motor)
Pre-order only
$7,976.74
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
$135.86
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
$2,371.63
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
$90.59
PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE
$402.21
Control panel for pump, 4 kW Control panel for pump, 4 kW
$470.20
PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$340.22
Control panel for pump, 1.5 kW Control panel for pump, 1.5 kW
$248.38
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
$144.39
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
$155.70
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
$181.17
Control panel for pump, 3 kW Control panel for pump, 3 kW
$457.34
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
$220.78
DN50 Thermodynamic flanged condensate trap PN16/1.0619 DN50 Thermodynamic flanged condensate trap PN16/1.0619
$531.58
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
$260.42
Control panel for pump, 5.5 kW Control panel for pump, 5.5 kW
$485.99
Control panel for pump, 2.2 kW Control panel for pump, 2.2 kW
$332.18
Control panel for pump, 7.5 kW Control panel for pump, 7.5 kW
$493.49
DN40 Thermodynamic flanged condensate trap PN16/1.0619 DN40 Thermodynamic flanged condensate trap PN16/1.0619
$465.14
Control panel for pump, 22 kW Control panel for pump, 22 kW
$1,896.86
Control panel for pump, 11 kW Control panel for pump, 11 kW
$509.57
Control panel for pump, 18.5 kW Control panel for pump, 18.5 kW
$823.76
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$68.21
Control panel for pump, 15 kW Control panel for pump, 15 kW
$683.06
PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
$24.82
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
$321.75
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Vacuum pump 2BE202 Ex 22kW 380V 50Hz
Output pipe diameter
DN100
Producer
BTS Engineering
Housing material
Сast iron
Flow, l/min
15
Power supply
3х380 V, 50 Hz
Rate of turn, rpm
970
Explosion protection
Yes
Seal
С-одинарное сальниковое уплотнение
Max.flow rate, m3/h
760
Vacuum depth, mBar
33
Input pipe diameter
DN100
Country of Origin
China
PumpType
vacuum
Drive Type
electric
Installation Type
horizontal
Weight, kg
875
Description Vacuum pump 2BE202 Ex 22kW 380V 50Hz
The 2BE series water ring vacuum pump is used to suck air or other aggressive, water-insoluble gases that are free of solid particles to create a vacuum in hermetically sealed vessels. The suction gas may be allowed to contain small amounts of liquid. Recommended pump operating pressure range: 0.04 MPa - 0.09 MPa. Such pumps are mainly used in the chemical, petrochemical, light industry, pharmaceutical, paper, metallurgy, building materials, electrical appliances, food, coal preparation, ore dressing, fertiliser and other industries. When equipped with an explosion-proof electric motor, the vacuum pump can be used to suck flammable and explosive gases, and when the vacuum pump body is made of corrosion-resistant material, it can be used to suck corrosive gases.
Documentation Vacuum pump 2BE202 Ex 22kW 380V 50Hz

Download instructions, catalog for Vacuum pump 2BE202 Ex 22kW 380V 50Hz
