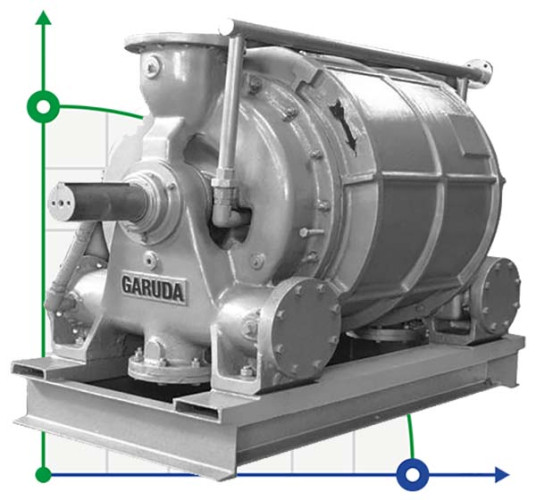

Vacuum pump GARUDA GXL 3001 SS6, 5600 m3/h, AISI 316

Brand:
GARUDA
Characteristics
Output pipe diameter:
150
Producer:
GARUDA
Housing material:
AISI 316 stainless steel
Impeller material:
AISI 316 stainless steel
Pressure:
Max 1.2 Kg/Cm2
Vacuum, mm Hg:
640 mm Hg with Seal Water 20C
Pump capacity, cu.m/hour:
5600
See all
Categories
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1039305
Price on request
Favorite
Compare
We deliver anywhere in the world
Products from the same category
Also buy with this product
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Vacuum pump GARUDA GXL 3001 SS6, 5600 m3/h, AISI 316
Output pipe diameter
150
Producer
GARUDA
Housing material
AISI 316 stainless steel
Impeller material
AISI 316 stainless steel
Pressure
Max 1.2 Kg/Cm2
Vacuum, mm Hg
640 mm Hg with Seal Water 20C
Pump capacity, cu.m/hour
5600
Explosion protection
No
Max.flow rate, m3/h
5600
Shaft material
AISI 410
Input pipe diameter
200
Material
AISI 316 stainless steel
Serial number of the pump
GXL
Country of Origin
India
PumpType
vacuum
Drive Type
electric
Installation Type
horizontal
Application
metallurgy, food industry, paper industry, energy
Analogue for
Nash-CL 3001
Description Vacuum pump GARUDA GXL 3001 SS6, 5600 m3/h, AISI 316

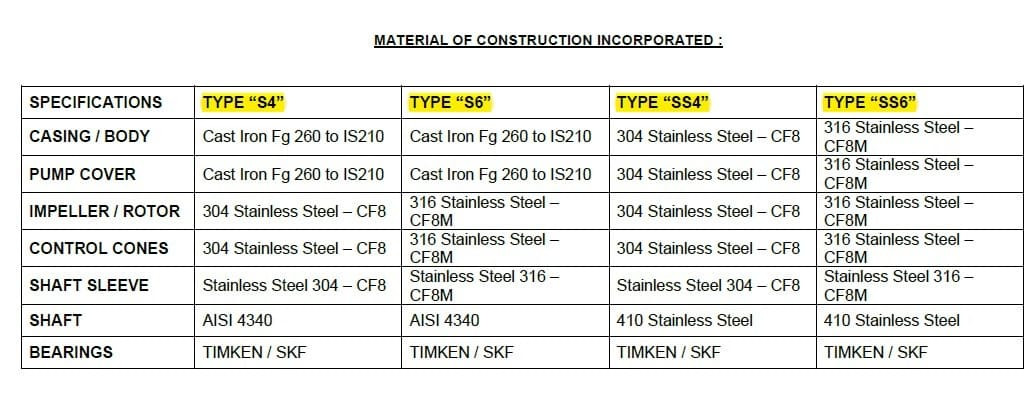

GXL water-ring vacuum pumps are used for a wide range of industrial applications, such as drying, distillation, impregnation, ventilation, sterilization, degassing, etc. The pumps are made of high-quality materials and high-quality components using the most advanced technologies in accordance with industry standards, so they offer excellent performance and durability. The pumps offer cost-effective and energy-efficient operation. They are also easy to install and maintain. They don't create too much noise and vibration. Available in the following materials: 316L, 410 SS, PH. bronze, alloy-20 GX - standard cast iron FG-260 with high quality cast iron/ductile iron rotor. GXS-304/316 stainless steel rotor and control cones 410 stainless steel shaft GCSC -316 SS.
Documentation Vacuum pump GARUDA GXL 3001 SS6, 5600 m3/h, AISI 316

Download instructions, catalog for Vacuum pump GARUDA GXL 3001 SS6, 5600 m3/h, AISI 316
