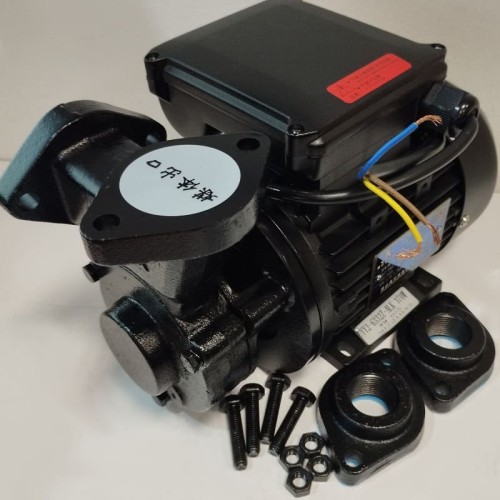

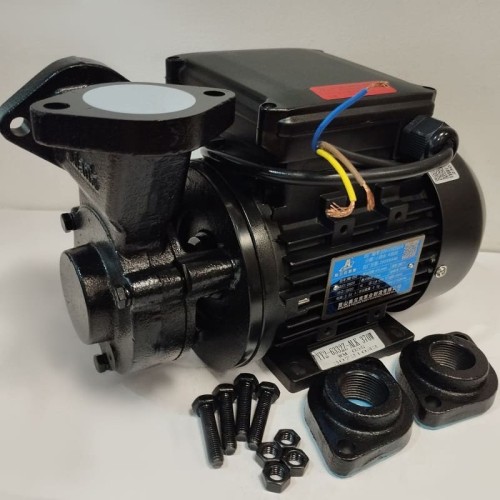

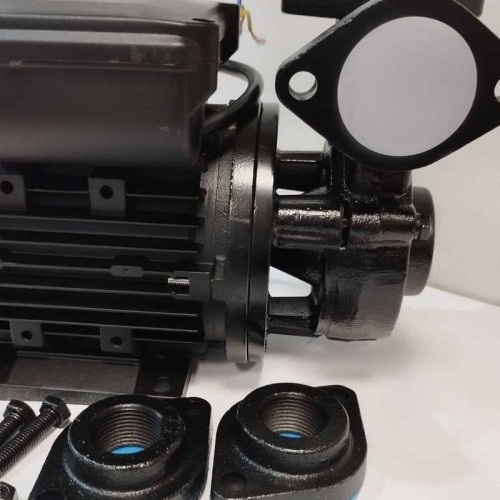

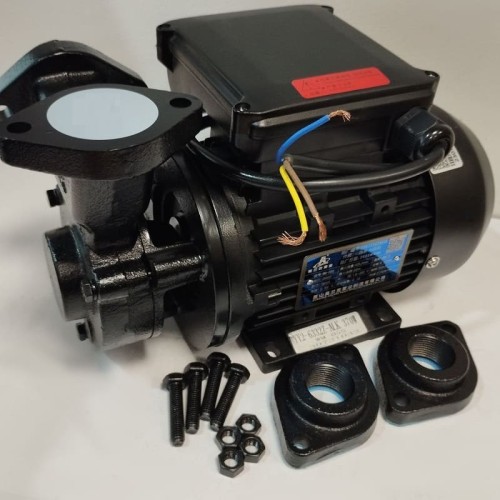

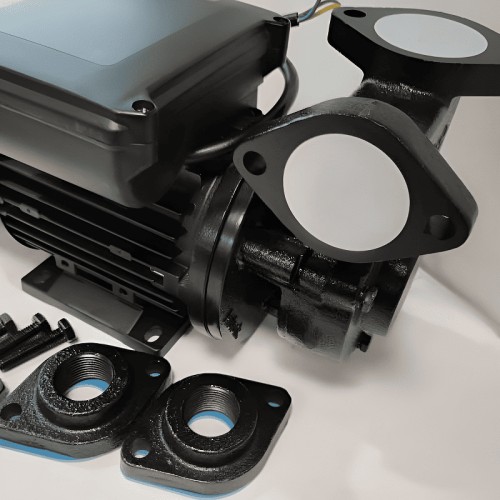

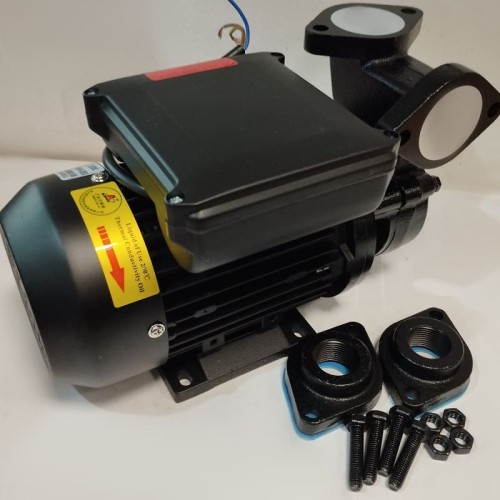

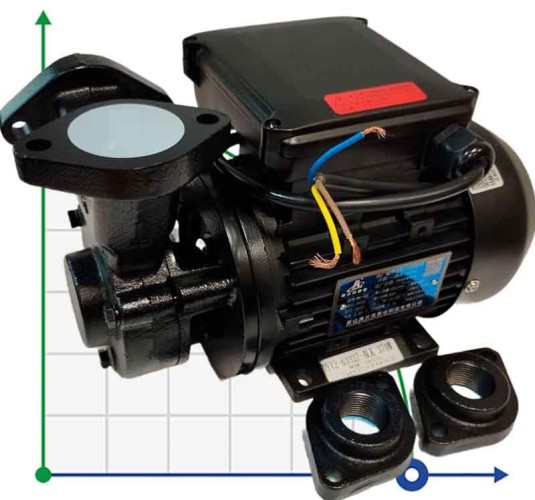

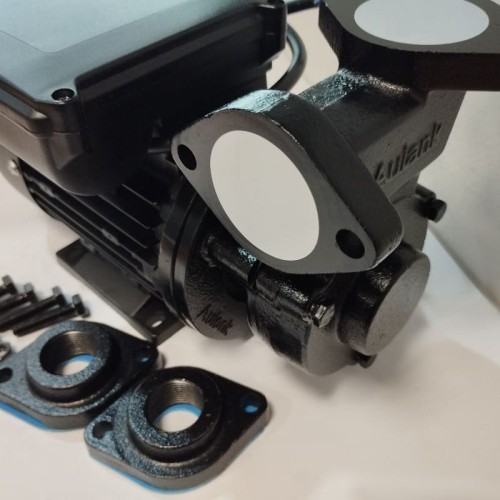

Vortex oil pump WM-05S, 220V -30°C+200°C

Brand:

ALUNAK

0 Comment

Characteristics

Output pipe diameter:

DN 20

Producer:

ALUNAK

Housing material:

Сast iron

Impeller material:

brass

Nom.head, m:

Power supply:

1х220 V, 50 Hz

Max. head, m:

See all

Documentation

Categories

Vortex pump, Hot water pumps, Vegetable oil pumps, Pumps for extreme temperatures from -196°C to +400°C, Ethylene glycol pumps

Favorite

Compare

Products from the same category

Vortex oil pump WM-033, 380V -30°C+200°C

In stock

$255.96

Vortex oil pump WM-033S, 220V -30°C+200°C

In stock

$255.96

Vortex oil pump WM-05, 380V -30°C+200°C

In stock

$288.99

Vortex oil pump WM-10, 380V -30°C+200°C

In stock

$317.83

Vortex oil pump WM-10S, 220V -30°C+200°C

In stock

$317.83

Vortex oil pump WM-20, 380V -30°C+200°C

Pre-order only

$427.51

Also buy with this product

Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW

$135.86

DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex

$2,371.63

Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW

$90.59

PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE

$402.21

Control panel for pump, 4 kW

$470.20

PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE

$340.22

Control panel for pump, 1.5 kW

$248.38

Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW

$144.39

Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW

$155.70

Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW

$181.17

Control panel for pump, 3 kW

$457.34

Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW

$220.78

DN50 Thermodynamic flanged condensate trap PN16/1.0619

$531.58

Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW

$260.42

Control panel for pump, 5.5 kW

$485.99

Control panel for pump, 2.2 kW

$332.18

Control panel for pump, 7.5 kW

$493.49

DN40 Thermodynamic flanged condensate trap PN16/1.0619

$465.14

Control panel for pump, 22 kW

$1,896.86

Control panel for pump, 11 kW

$509.57

Control panel for pump, 18.5 kW

$823.76

PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE

$68.21

Control panel for pump, 15 kW

$683.06

PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM

$24.82

PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE

$321.75

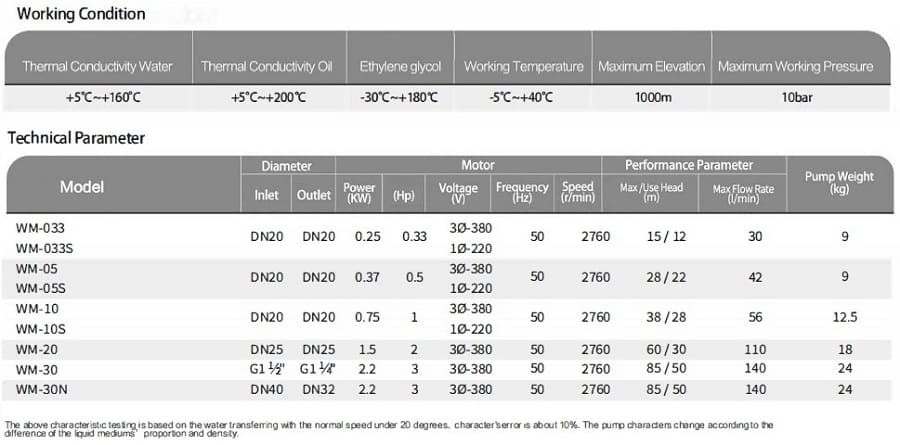

Features Vortex oil pump WM-05S, 220V -30°C+200°C

Output pipe diameter	DN 20
Producer	ALUNAK
Housing material	Сast iron
Impeller material	brass
Nom.head, m	22
Power supply	1х220 V, 50 Hz
Max. head, m	28
Rate of turn, rpm	2 760
Feed height, m	28
Operating temperature	thermal conductivity water +5˚С~+160˚С; thermal conductivity oil +5˚С~+200˚С; ethylene glycol -30˚С~+180˚С
Power capacity, kW	0,37
Temperature (min), °C	-30
Pump capacity, cu.m/hour	2.52
Flow rate, l/min	42
Explosion protection	No
Max.flow rate, m3/h	2.52
Max.temperature, C	200
Pressure, bar	10
Input pipe diameter	DN 20
Serial number of the pump	WM
Country of Origin	China
PumpType	vortex
Drive Type	electric
Installation Type	horizontal
Weight, kg	9

Description Vortex oil pump WM-05S, 220V -30°C+200°C

Vortex oil pump WM. Scope of application: mold temperature control, ultrasonic cleaning, test tool, machine cooling, Cyfinder heat preservation, hot and cold switching system. Circulation medium: water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil and other liquids without particles and fibers.

Documentation Vortex oil pump WM-05S, 220V -30°C+200°C

Download instructions, catalog for Vortex oil pump WM-05S, 220V -30°C+200°C
