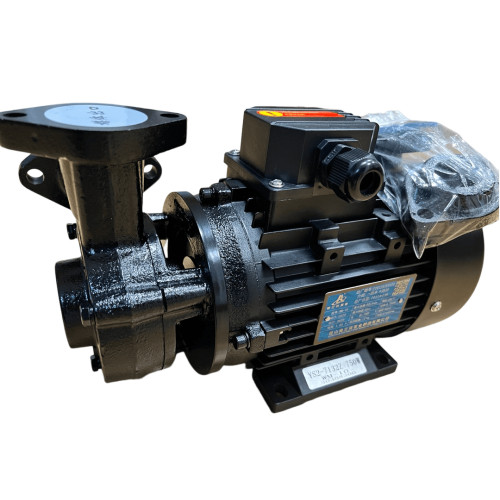

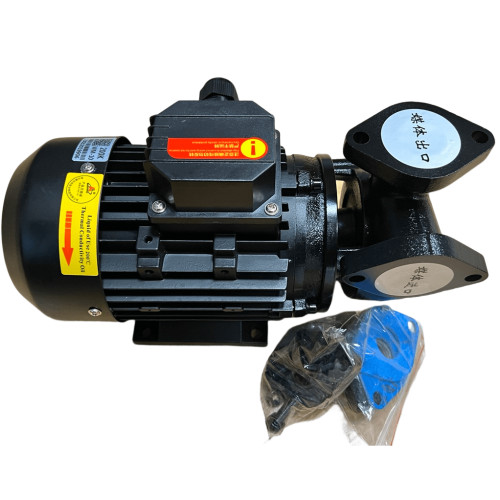

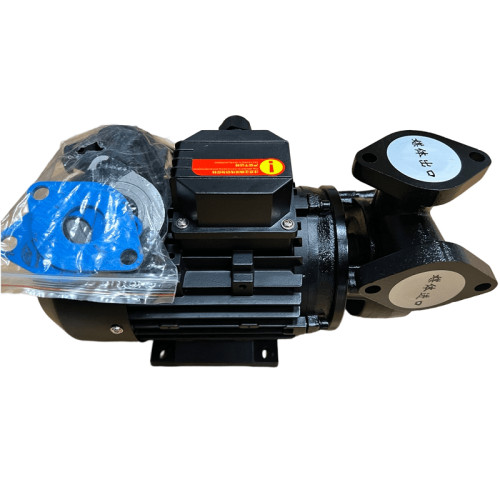

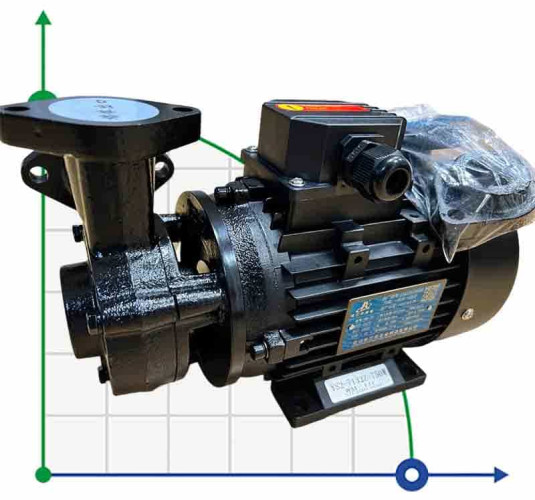

Vortex oil pump WM-10, 380V -30°C+200°C
Brand:
ALUNAKCharacteristics
Output pipe diameter:
DN 20
Producer:
ALUNAK
Housing material:
Сast iron
Impeller material:
brass
Nom.head, m:
28
Power supply:
3х380 V, 50 Hz
Max. head, m:
38
See all
Documentation
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards

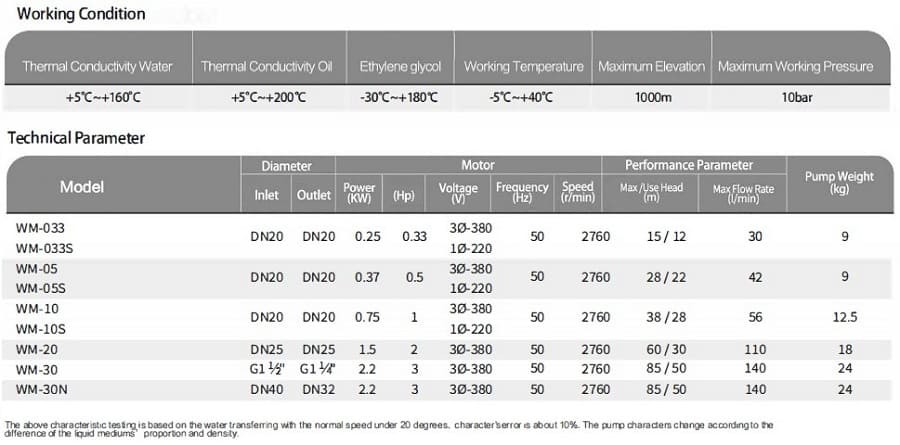

Features Vortex oil pump WM-10, 380V -30°C+200°C
Output pipe diameter | DN 20 |
Producer | ALUNAK |
Housing material | Сast iron |
Impeller material | brass |
Nom.head, m | 28 |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 38 |
Rate of turn, rpm | 2 760 |
Feed height, m | 38 |
Operating temperature | thermal conductivity water +5˚С~+160˚С; thermal conductivity oil +5˚С~+200˚С; ethylene glycol -30˚С~+180˚С |
Power capacity, kW | 0,75 |
Pump capacity, cu.m/hour | 3.36 |
Flow rate, l/min | 56 |
Explosion protection | No |
Max.flow rate, m3/h | 3.36 |
Temperature (min), °C | -30 |
Max.temperature, C | 200 |
Pressure, bar | 10 |
Input pipe diameter | DN 20 |
Serial number of the pump | WM |
Country of Origin | China |
PumpType | vortex |
Drive Type | electric |
Installation Type | horizontal |
Weight, kg | 12,5 |
Description Vortex oil pump WM-10, 380V -30°C+200°C
Vortex oil pump WM.
Scope of application: mold temperature control, ultrasonic cleaning, test tool, machine cooling, Cyfinder heat preservation, hot and cold switching system.
Circulation medium: water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil and other liquids without particles and fibers.
