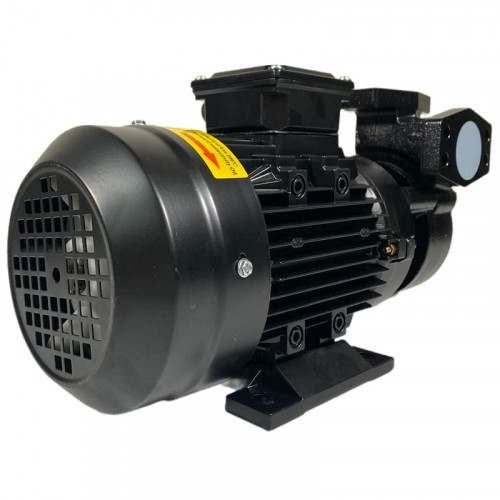

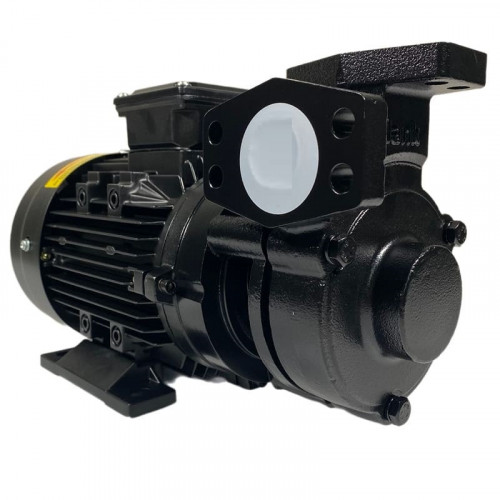

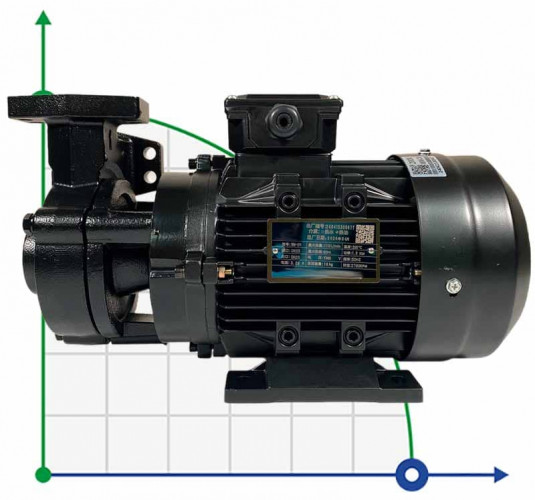

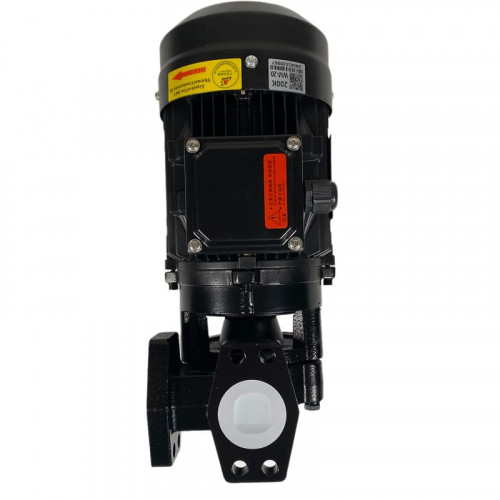

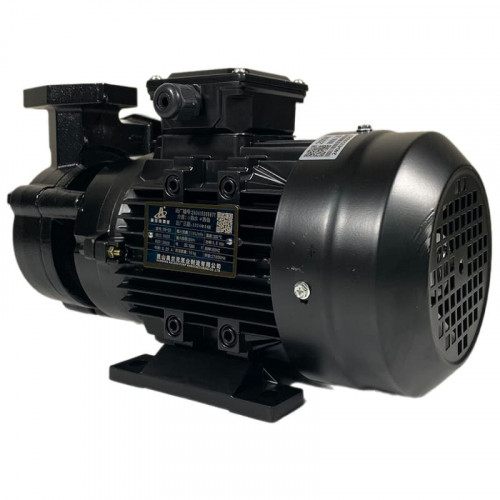

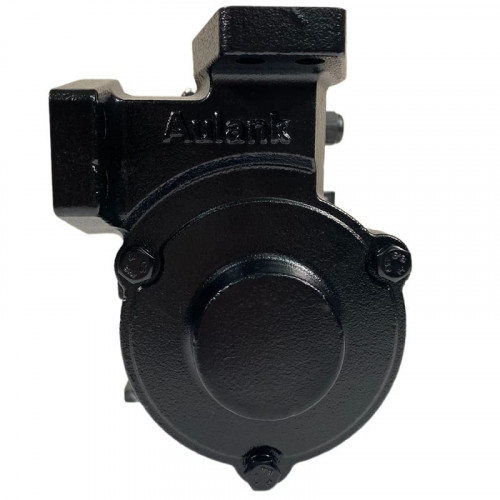

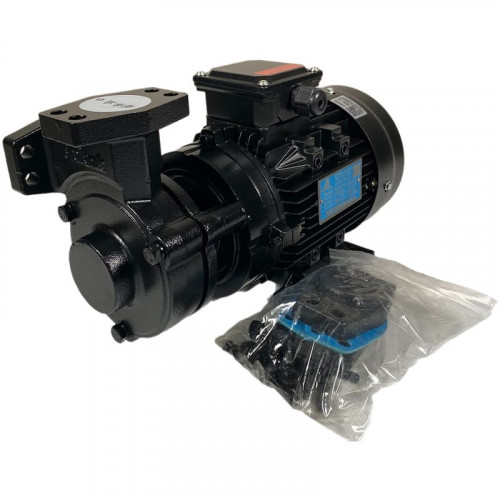

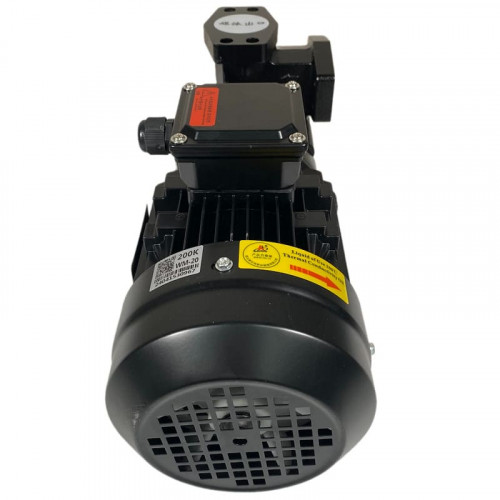

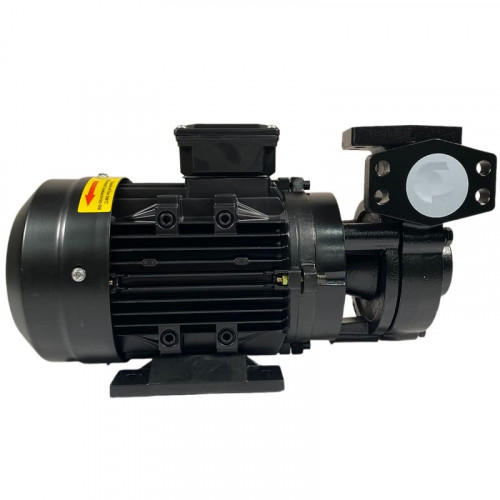

Vortex oil pump WM-20, 380V -30°C+200°C

Brand:

ALUNAK

0 Comment

Characteristics

Output pipe diameter:

DN 25

Producer:

ALUNAK

Housing material:

Сast iron

Impeller material:

brass

Nom.head, m:

Power supply:

3х380 V, 50 Hz

Max. head, m:

See all

Documentation

Categories

Vortex pump, Hot water pumps, Vegetable oil pumps, Pumps for extreme temperatures from -196°C to +400°C, Ethylene glycol pumps

Favorite

Compare

Products from the same category

Pedrollo PKm 60 - MD vortex pump

Pre-order only

$110.90

Vortex oil pump WM-05S, 220V -30°C+200°C

In stock

$262.72

Vortex oil pump WM-10, 380V -30°C+200°C

In stock

$288.94

Vortex oil pump WM-10S, 220V -30°C+200°C

In stock

$288.94

Vortex oil pump WM-30, 380V -30°C+200°C

In stock

$570.20

Vortex oil pump WM-30N, 380V -30°C+200°C

Pre-order only

$570.20

Also buy with this product

Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW

$123.52

DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex

$2,156.03

Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW

$82.35

PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE

$365.65

Control panel for pump, 4 kW

$427.46

PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE

$309.30

Control panel for pump, 1.5 kW

$225.79

Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW

$131.26

Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW

$141.53

Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW

$164.70

Control panel for pump, 3 kW

$415.77

Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW

$200.71

DN50 Thermodynamic flanged condensate trap PN16/1.0619

$483.25

Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW

$236.74

Control panel for pump, 5.5 kW

$441.80

Control panel for pump, 2.2 kW

$301.99

Control panel for pump, 7.5 kW

$448.62

DN40 Thermodynamic flanged condensate trap PN16/1.0619

$422.86

Control panel for pump, 22 kW

$1,724.41

Control panel for pump, 11 kW

$463.25

Control panel for pump, 18.5 kW

$748.87

PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE

$62.01

Control panel for pump, 15 kW

$620.95

PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM

$22.57

PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE

$292.50

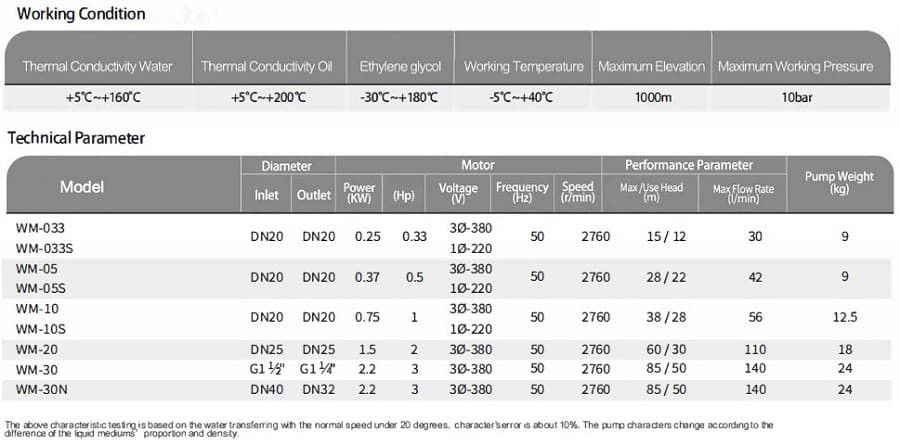

Features Vortex oil pump WM-20, 380V -30°C+200°C

Output pipe diameter	DN 25
Producer	ALUNAK
Housing material	Сast iron
Impeller material	brass

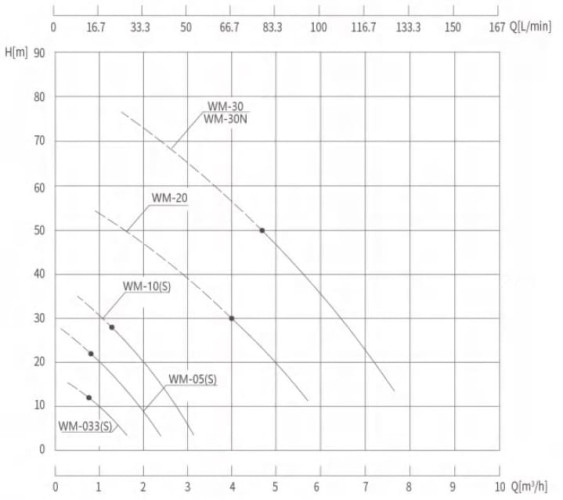

Nom.head, m	30
Power supply	3х380 V, 50 Hz
Max. head, m	55
Rate of turn, rpm	2 760
Feed height, m	55
Operating temperature	thermal conductivity water +5˚С~+160˚С; thermal conductivity oil +5˚С~+200˚С; ethylene glycol -30˚С~+180˚С
Power capacity, kW	1,5
Pump capacity, cu.m/hour	6.6
Flow rate, l/min	110
Explosion protection	No
Max.flow rate, m3/h	6.6
Temperature (min), °C	-30
Max.temperature, C	200
Pressure, bar	10
Input pipe diameter	DN 25
Serial number of the pump	WM
Country of Origin	China
PumpType	vortex
Drive Type	electric
Installation Type	horizontal
Weight, kg	18

Description Vortex oil pump WM-20, 380V -30°C+200°C

Vortex oil pump WM. Scope of application: mold temperature control, ultrasonic cleaning, test tool, machine cooling, Cyfinder heat preservation, hot and cold switching system. Circulation medium: water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil and other liquids without particles and fibers.

Documentation Vortex oil pump WM-20, 380V -30°C+200°C

Download instructions, catalog for Vortex oil pump WM-20, 380V -30°C+200°C
