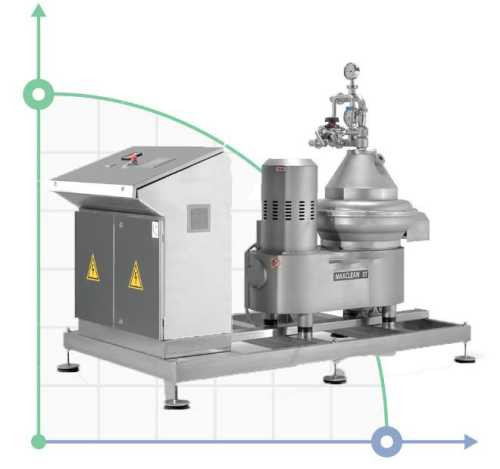

MAXCLEAN 25T milk separation centrifuge
Brand:
HAUSCharacteristics
Producer:
HAUS
Power supply:
3х380 V, 50 Hz
Dimensions, mm:
1500x2400x2170
Power capacity, kW:
22
Max.flow rate, m3/h:
25
Country of Origin:
Turkey
Analogue for:
GEA, ALFA LAVAL, POLAT Makina, BROADBENT, CBB Decanter, PHOENIX, Flottweg, ОГШ
Favorite
Compare
Products from the same category
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features MAXCLEAN 25T milk separation centrifuge
Producer | HAUS |
Power supply | 3х380 V, 50 Hz |
Dimensions, mm | 1500x2400x2170 |
Power capacity, kW | 22 |
Max.flow rate, m3/h | 25 |
Country of Origin | Turkey |
Analogue for | GEA, ALFA LAVAL, POLAT Makina, BROADBENT, CBB Decanter, PHOENIX, Flottweg, ОГШ |
Description MAXCLEAN 25T milk separation centrifuge
The price is on the terms of FCA, Turkey.
The MAXCLEAN series separator is specially designed for dairies
The principle of operation is to remove solid particles from the liquid continuously and quickly, by mechanically separating the liquid into a liquid and solid phase.
Solid particles with a higher density than the liquid are pressed against the inner wall of the bowl and deposited, while liquids with a lower density form coaxial inner layers.
All parts in contact with the product are manufactured in accordance with international food industry standards.
Characteristics:
* Product feed temperature: 4°C;
• Suitable for system C.I.P
* Motor brand: WAT;
* Drive type: belt;
* Protection class: IP54;
* Discharge method: valve;
* Conditional control: automatic;
* Heavy phase discharge type: centrifugal pump;
* Main drum material: EN 1.4418;
* Disk material: EN 1.4401 AISI 316;
* Speed sensor / model: / SICK IME 18-08BPSZW2S;
* Inverter / model: DANFOSS-FC302;
* Hydrophore/ type: / HP 25-50 PAS.PAK;
* Siemens S7 1214c DC/DC/DC plc model;
* Display model: SIEMENS-KTP 7000;
* Vibration control.
