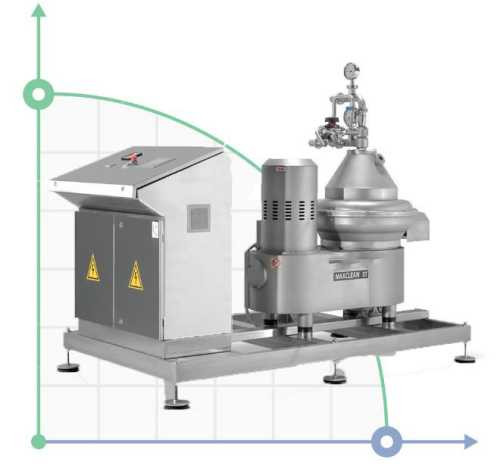

MAXCREAM 5T separator for separating fat from milk
Brand:
HAUSCharacteristics
Producer:
HAUS
Power supply:
3х380 V, 50 Hz
Rate of turn, rpm:
10 000
Dimensions, mm:
1460x1700x1950
Power capacity, kW:
11
Max.flow rate, m3/h:
5
Country of Origin:
Turkey
See all
Favorite
Compare
Products from the same category
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features MAXCREAM 5T separator for separating fat from milk
Producer | HAUS |
Power supply | 3х380 V, 50 Hz |
Rate of turn, rpm | 10 000 |
Dimensions, mm | 1460x1700x1950 |
Power capacity, kW | 11 |
Max.flow rate, m3/h | 5 |
Country of Origin | Turkey |
Analogue for | GEA, ALFA LAVAL, POLAT Makina, BROADBENT, CBB Decanter, PHOENIX, Flottweg, ОГШ |
Description MAXCREAM 5T separator for separating fat from milk
The price is on the terms of FCA, Turkey.
Centrifugal separators, configured as a concentrator (skimmer) for efficient, fast and hygienic separation of fat from milk. They can be adjusted to separate standard or high concentrations of cream in milk or completely separate fat from whey. The MAXCREAM separators gently process milk with the lowest residual fat in skim milk content under ideal process conditions. When separating cream from milk, this makes it possible to regulate the concentration of cream by means of throttling valves located at the phase outlets of the separator. The MAXCREAM separators can achieve a wide range of cream concentrations from 40% to 65%. You can easily and accurately adjust the cream concentration using the MILKOTUNE standardization unit as well as the back pressure valves. Due to their high separation efficiency, they are effective in cleaning contaminating solids as well as degreasing. Thanks to its fast and efficient discharge system, it delivers solid discharge with minimal product content. High quality stainless steel construction Special submerged delivery pipe design Ready for cleaning in place (CIP) Fast and efficient drainage system Hygienic design High separation efficiency.
Characteristics:
* Percentage of fat residues in low-fat milk: % 0.05;
* Product feed temperature: 45-55 °C;
• Suitable for system C.I.P
* Motor brand: WAT;
* Drive type: belt;
* Protection class: IP54;
* Discharge method: valve;
* Conditional control: automatic;
* Heavy phase discharge type: centrifugal pump;
* Main drum material: EN 1.4418;
* Disk material: EN 1.4401 AISI 316;
* Speed sensor / model: / SICK IME 18-08BPSZW2S;
* Inverter / model: DANFOSS-FC302;
* Hydrophore/ type: / HP 25-50 PAS.PAK;
* Siemens S7 1214c DC/DC/DC plc model;
* Display model: SIEMENS-KTP 7000;
* Vibration control.
