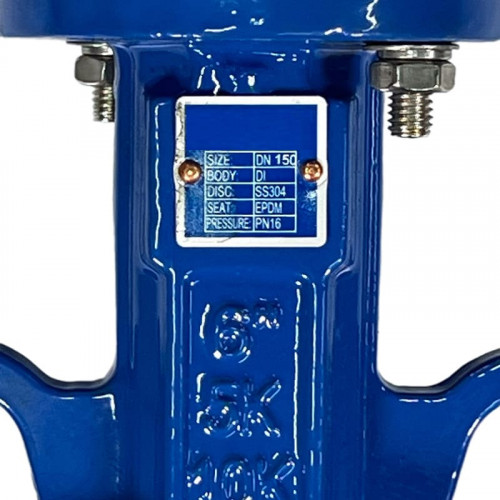

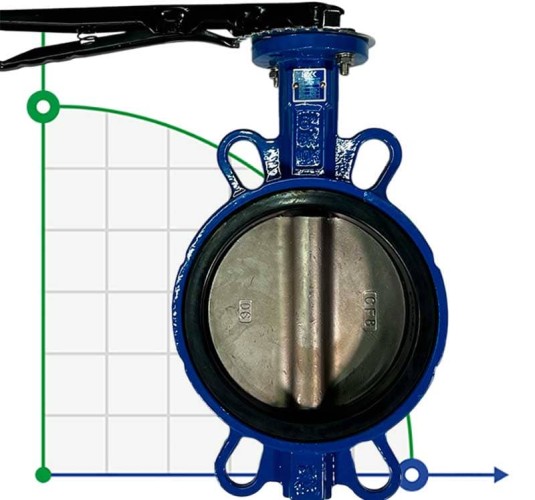

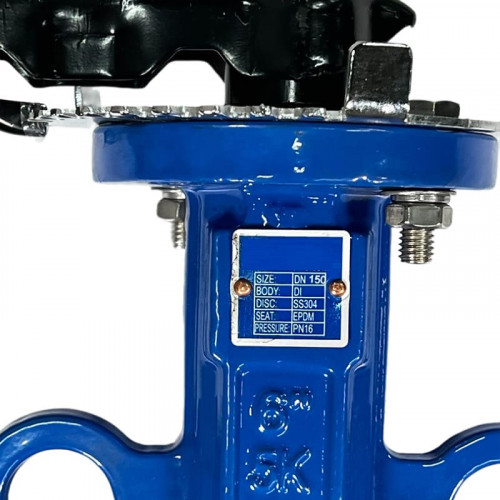

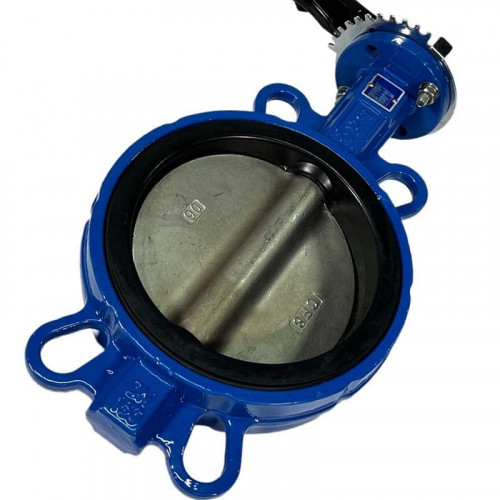

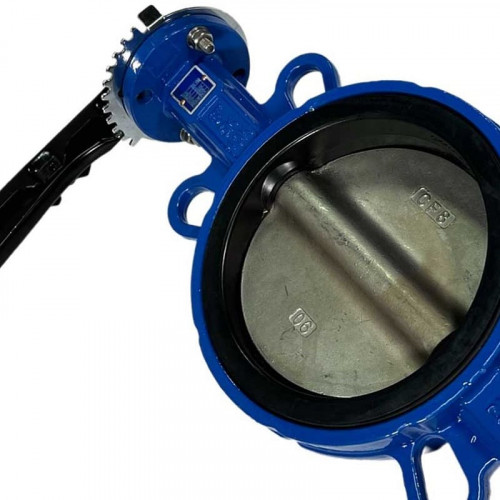

PN16 DN150 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
PN16 DN150 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
PN16 DN150 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
PN16 DN150 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
PN16 DN150 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
PN16 DN150 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
PN16 DN150 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
PN16 DN150 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Housing material:
AISI 304 stainless steel
Operating temperature:
0°C + 120°C
Seal material:
EPDM
Nom.pressure, Mpa:
1,6
Connection type:
interflange
Conditional passage,DN:
150
See all
Documentation
Categories
Favorite
Compare
Products from the same category
PN16 DN80 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
Pre-order only
$30.93
PN16 DN200 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
In stock
$156.45
PN16 DN250 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
In stock
$229.28
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures PN16 DN150 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
Producer | BTS Engineering |
Housing material | AISI 304 stainless steel |
Operating temperature | 0°C + 120°C |
Seal material | EPDM |
Nom.pressure, Mpa | 1,6 |
Connection type | interflange |
Conditional passage,DN | 150 |
Material of the disk | cast iron |
Country of Origin | China |
Working Environment | water, air, liquid, thick and viscous liquids, non-corrosive environment |
Description PN16 DN150 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
Butterfly valves are used in industry and manufacturing. The devices are used on pipelines with a large pipe diameter that transport the medium under low pressure and low flow. Depending on the model, the shut-off valve discs can be made of cast iron, stainless steel or alloy steel.
Butterfly valves are universal for their intended purpose.
Advantages of butterfly valves:
- compact size;
- light weight;
- Class A tightness;
- minimal hydraulic losses ;
- easy installation, maintenance, operation ;
- wear-resistant anti-corrosion materials.
The use of butterfly valves reduces installation costs, minimizes hydraulic resistance, and allows you to effectively regulate flows in main systems.

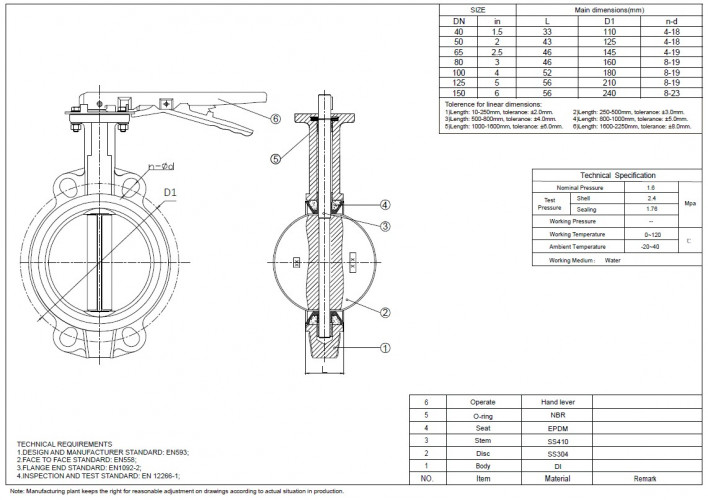

Documentation PN16 DN150 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
Download instructions, catalog for PN16 DN150 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
