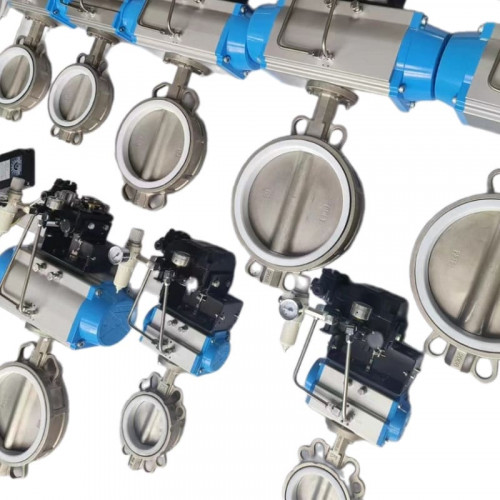

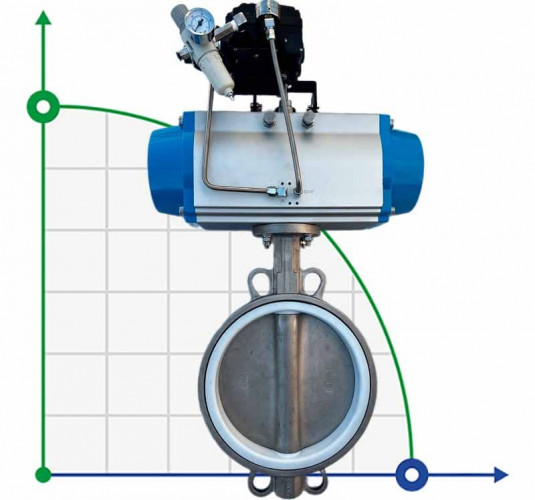

PN16 DN200 Butterfly valve, body, disc AISI 304, PTFE with double-acting pneumatic actuator, pneum.distribution.5/2, 24V coil, LS10 limit switch box
PN16 DN200 Butterfly valve, body, disc AISI 304, PTFE with double-acting pneumatic actuator, pneum.distribution.5/2, 24V coil, LS10 limit switch box
PN16 DN200 Butterfly valve, body, disc AISI 304, PTFE with double-acting pneumatic actuator, pneum.distribution.5/2, 24V coil, LS10 limit switch box
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Housing material:
AISI 304 stainless steel
Operating temperature:
-60°C + 260°C
Seal material:
PTFE
Explosion protection:
No
Nom.pressure, Mpa:
1,6
Connection type:
interflange
See all
Documentation
Categories
Favorite
Compare
Products from the same category
PN16 DN150 Butterfly valve, body, disc AISI 304, PTFE with double-acting pneumatic actuator, pneum.distribution.5/2, 24V coil, LS10 limit switch box
Pre-order only
$805.62
Butterfly valve, UPVC body and disc, PN16 DN150 with double-acting pneumatic actuator
Pre-order only
Price on request
Butterfly valve, UPVC body and disc, PN16 D200 with double-acting pneumatic actuator
Pre-order only
Price on request
PN16 DN350 Butterfly valve, body and disc made of stainless steel AISI 304, seat EPDM
In stock
$1,480.51
PN16 DN300 Butterfly valve, body and disc made of stainless steel AISI 304, seat EPDM
Pre-order only
$945.89
PN16 DN250 Butterfly valve, body and disc made of stainless steel AISI 304, seat EPDM
Pre-order only
$440.51
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures PN16 DN200 Butterfly valve, body, disc AISI 304, PTFE with double-acting pneumatic actuator, pneum.distribution.5/2, 24V coil, LS10 limit switch box
Producer | BTS Engineering |
Housing material | AISI 304 stainless steel |
Operating temperature | -60°C + 260°C |
Seal material | PTFE |
Explosion protection | No |
Nom.pressure, Mpa | 1,6 |
Connection type | interflange |
Conditional passage,DN | 200 |
Material of the disk | AISI 304 stainless steel |
Country of Origin | China |
Drive Type | pneumatic |
Working Environment | water, air, liquid, thick and viscous liquids, non-corrosive environment |
Description PN16 DN200 Butterfly valve, body, disc AISI 304, PTFE with double-acting pneumatic actuator, pneum.distribution.5/2, 24V coil, LS10 limit switch box
Butterfly valve with double-acting pneumatic actuator with 5/2 pneumatic distributor, with 24 V DC coil, with LS10 limit switch box, is used to shut off the flow of process medium in a pipeline. The locking element in the valve is a rotary disc. The body and disc are made of stainless steel AISI 304.
Butterfly gate valve or butterfly disc gate valve is used to shut off liquid and gaseous medium in production facilities and enterprises of heat and power, water supply, chemical, oil refining, food and other industries.
Documentation PN16 DN200 Butterfly valve, body, disc AISI 304, PTFE with double-acting pneumatic actuator, pneum.distribution.5/2, 24V coil, LS10 limit switch box
Download instructions, catalog for PN16 DN200 Butterfly valve, body, disc AISI 304, PTFE with double-acting pneumatic actuator, pneum.distribution.5/2, 24V coil, LS10 limit switch box
