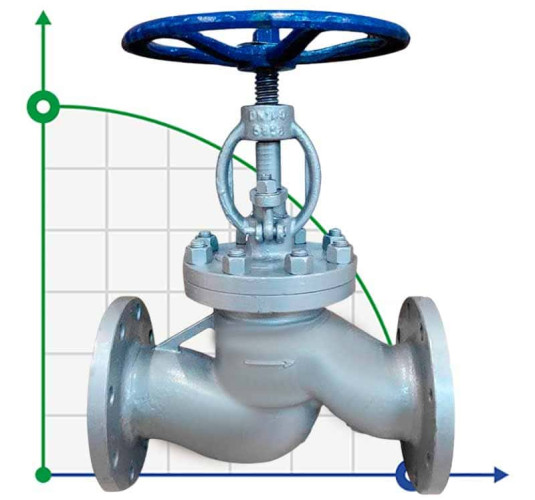

PN16 DN80 Carbon steel flanged valve, Seal AISI 304
PN16 DN80 Carbon steel flanged valve, Seal AISI 304
PN16 DN80 Carbon steel flanged valve, Seal AISI 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Housing material:
Carbon steel
Operating temperature:
≤200
Seal material:
AISI 304 stainless steel
Nom.pressure, Mpa:
1,6
Connection type:
flanged
Conditional passage,DN:
80
See all
Categories
Favorite
Compare
Products from the same category
PN16 DN25 tainless steel flanged valve AISI 304, Seal AISI 304
Pre-order only
$182.01
PN16 DN20 tainless steel flanged valve AISI 304, Seal AISI 304
Pre-order only
$178.75
PN16 DN100 Carbon steel flanged valve, Seal AISI 304
Pre-order only
$451.92
PN16 DN65 Carbon steel flanged valve, Seal AISI 304
Pre-order only
$313.20
PN16 DN50 Carbon steel flanged valve, Seal AISI 304
Pre-order only
$203.32
PN16 DN40 Carbon steel flanged valve, Seal AISI 304
Pre-order only
$164
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures PN16 DN80 Carbon steel flanged valve, Seal AISI 304
Producer | BTS Engineering |
Housing material | Carbon steel |
Operating temperature | ≤200 |
Seal material | AISI 304 stainless steel |
Nom.pressure, Mpa | 1,6 |
Connection type | flanged |
Conditional passage,DN | 80 |
Material of the disk | AISI 304 stainless steel |
Country of Origin | China |
Working Environment | water, air, steam, liquids, thick and viscous liquids, non-corrosive environment |
Description PN16 DN80 Carbon steel flanged valve, Seal AISI 304
The flanged Valve is designed for use as shut-off and control valves in water supply, heating and industrial systems of gaseous and liquid non-aggressive media. Installation on the pipeline is carried out in any position (horizontal or vertical), taking into account the flow direction of the working medium. The main features of this Valve are its reliability and modern safe design. The valve passes a full test cycle, which guarantees a high level of quality in accordance with the requirements of the standards.
