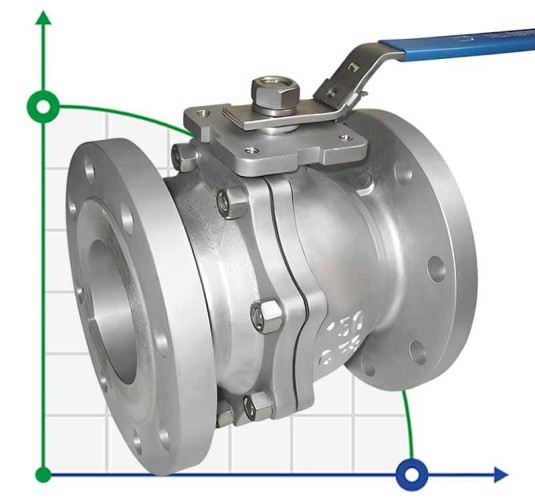

PN16 DN20 Stainless steel ball valve AISI 304, Seat PTFE
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Housing material:
AISI 304 stainless steel
Operating temperature:
≤150
Seal material:
PTFE
Nom.pressure, Mpa:
1,6
Connection type:
flanged
Conditional passage,DN:
20
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features PN16 DN20 Stainless steel ball valve AISI 304, Seat PTFE
Producer | BTS Engineering |
Housing material | AISI 304 stainless steel |
Operating temperature | ≤150 |
Seal material | PTFE |
Nom.pressure, Mpa | 1,6 |
Connection type | flanged |
Conditional passage,DN | 20 |
Country of Origin | China |
Working Environment | water, air, steam, liquids, thick and viscous liquids, non-corrosive environment |
Description PN16 DN20 Stainless steel ball valve AISI 304, Seat PTFE
The ball valve is designed to block the flow of the working medium (water). The main condition for the operation of the crane is its full opening or closing. Cranes cannot be used as control devices.
Due to their ease of installation and reliability, these cranes are very popular.
The flanged ball valve has high performance characteristics due to the use of high-quality stainless steel for the manufacture of the main parts (body, Ball, rod), and fluoroplast (PTFE) is used as a sealing material. The high quality of structural materials makes it possible to use cranes in the chemical, food, and pharmaceutical fields. The minimum dimensions of cranes allow their use for installation in places with limited dimensions.
Documentation PN16 DN20 Stainless steel ball valve AISI 304, Seat PTFE
Download instructions, catalog for PN16 DN20 Stainless steel ball valve AISI 304, Seat PTFE
