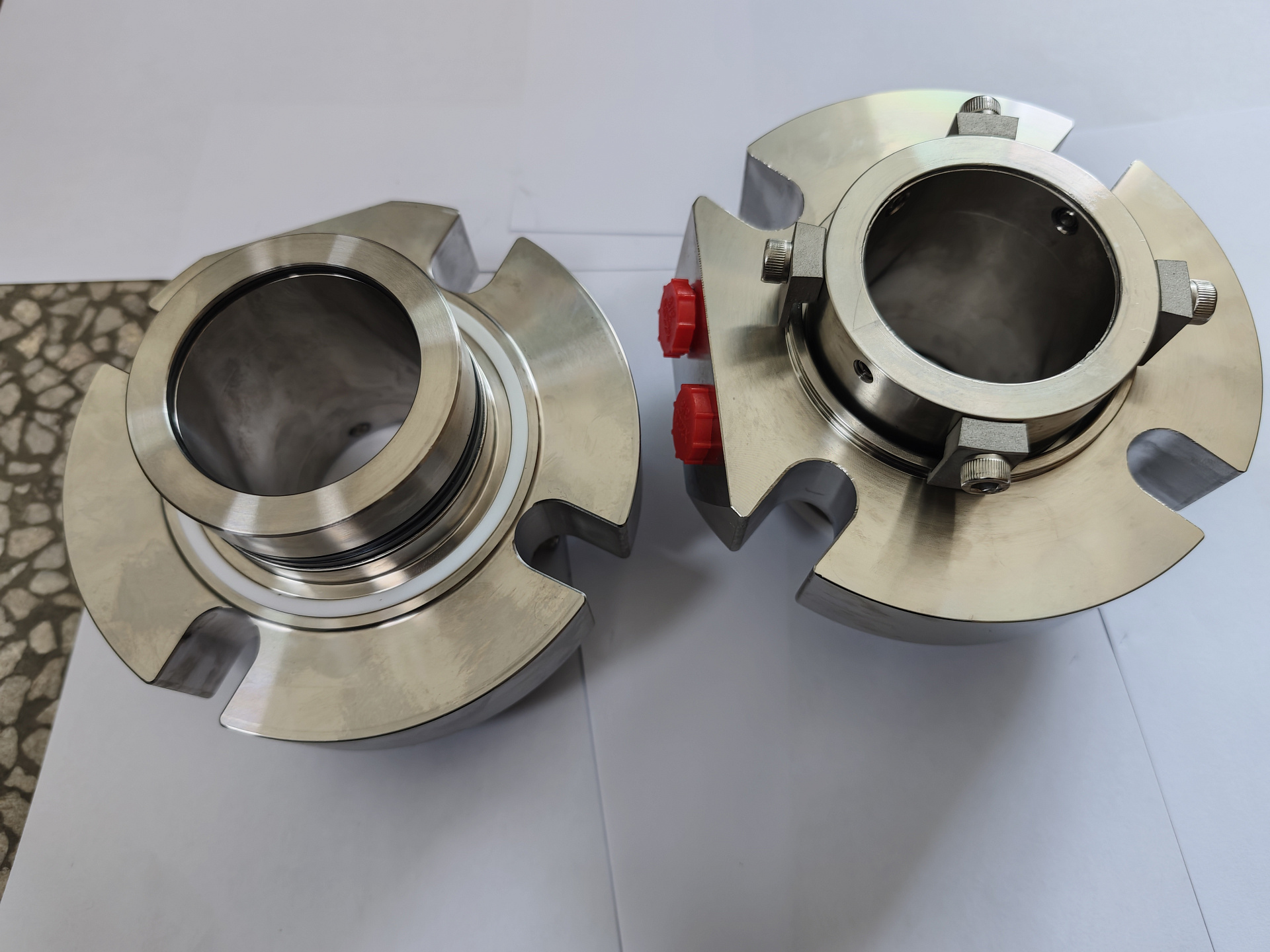

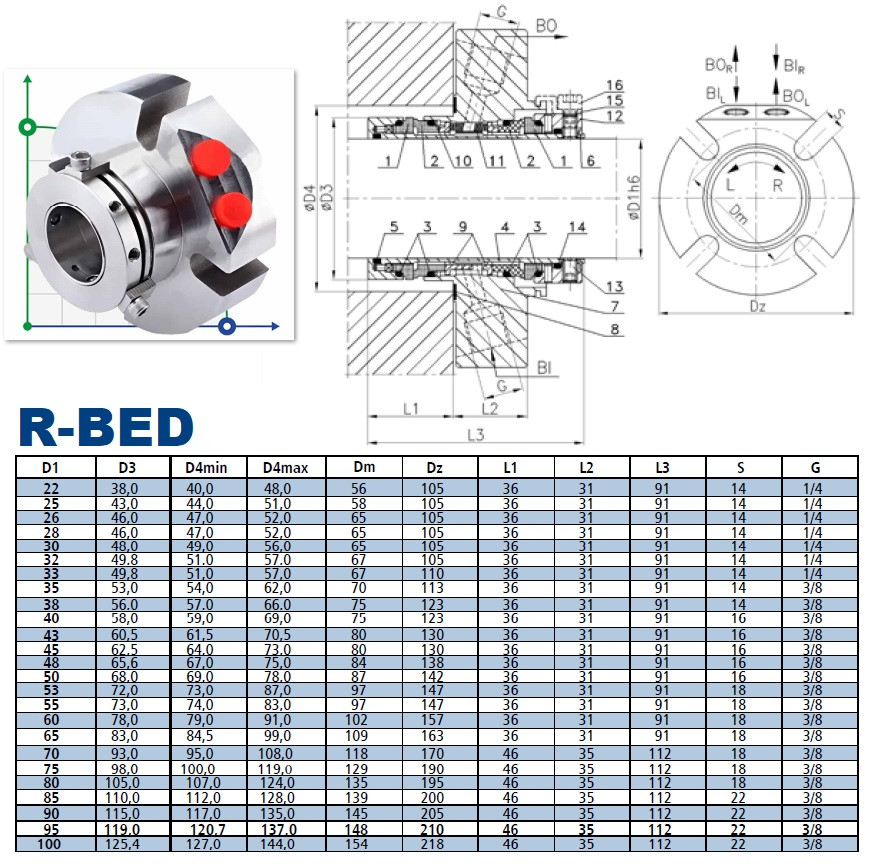

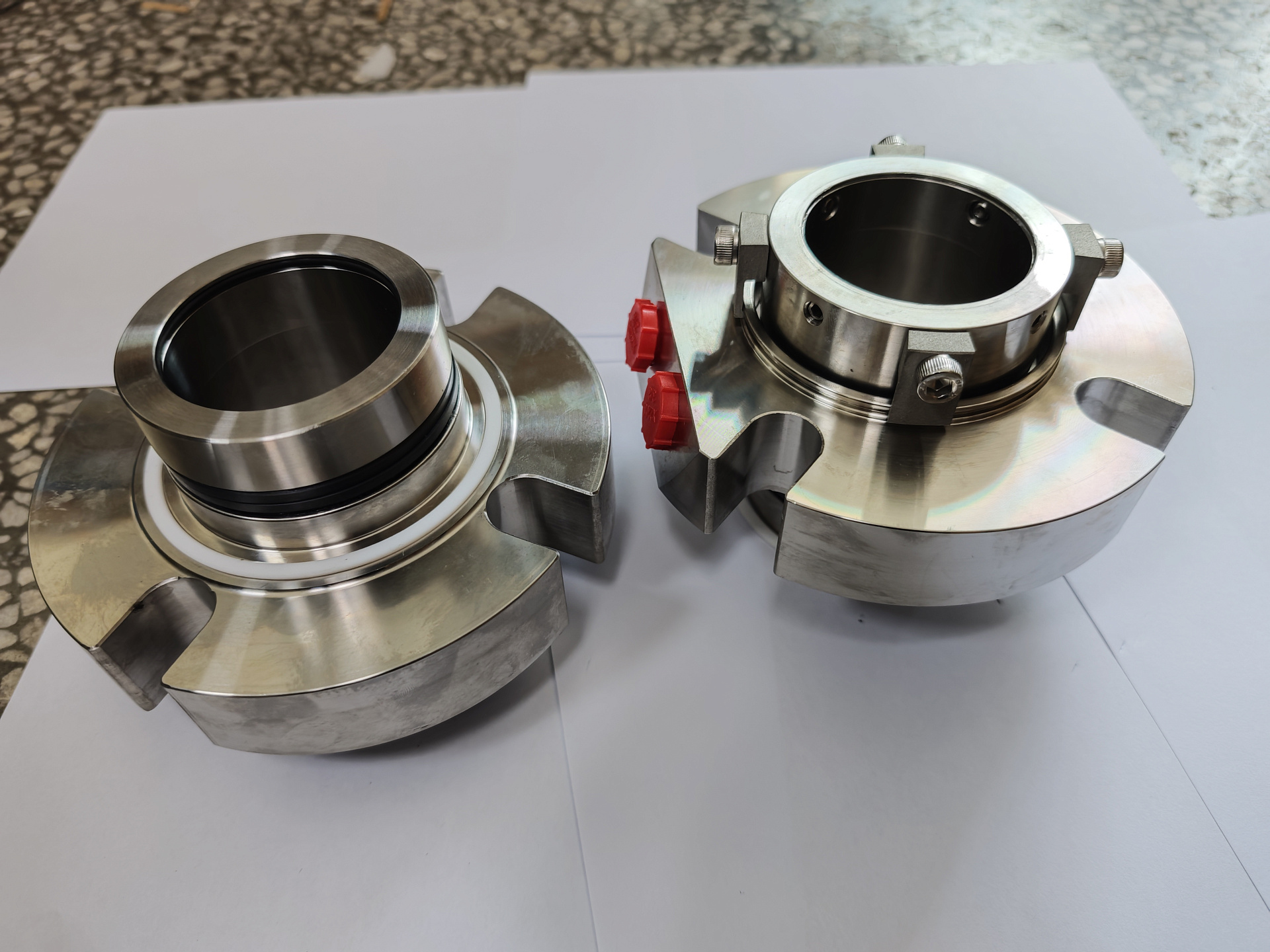

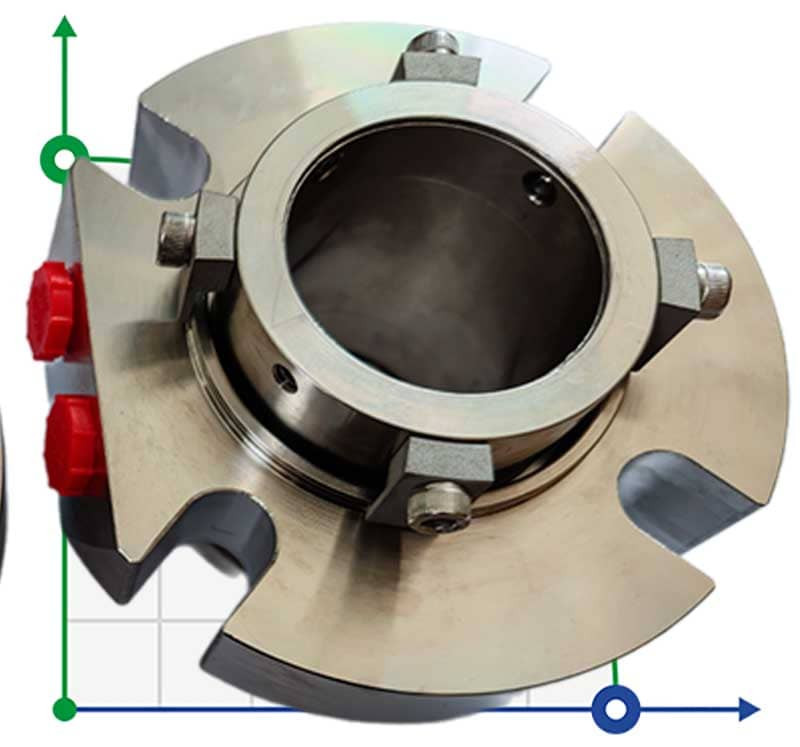

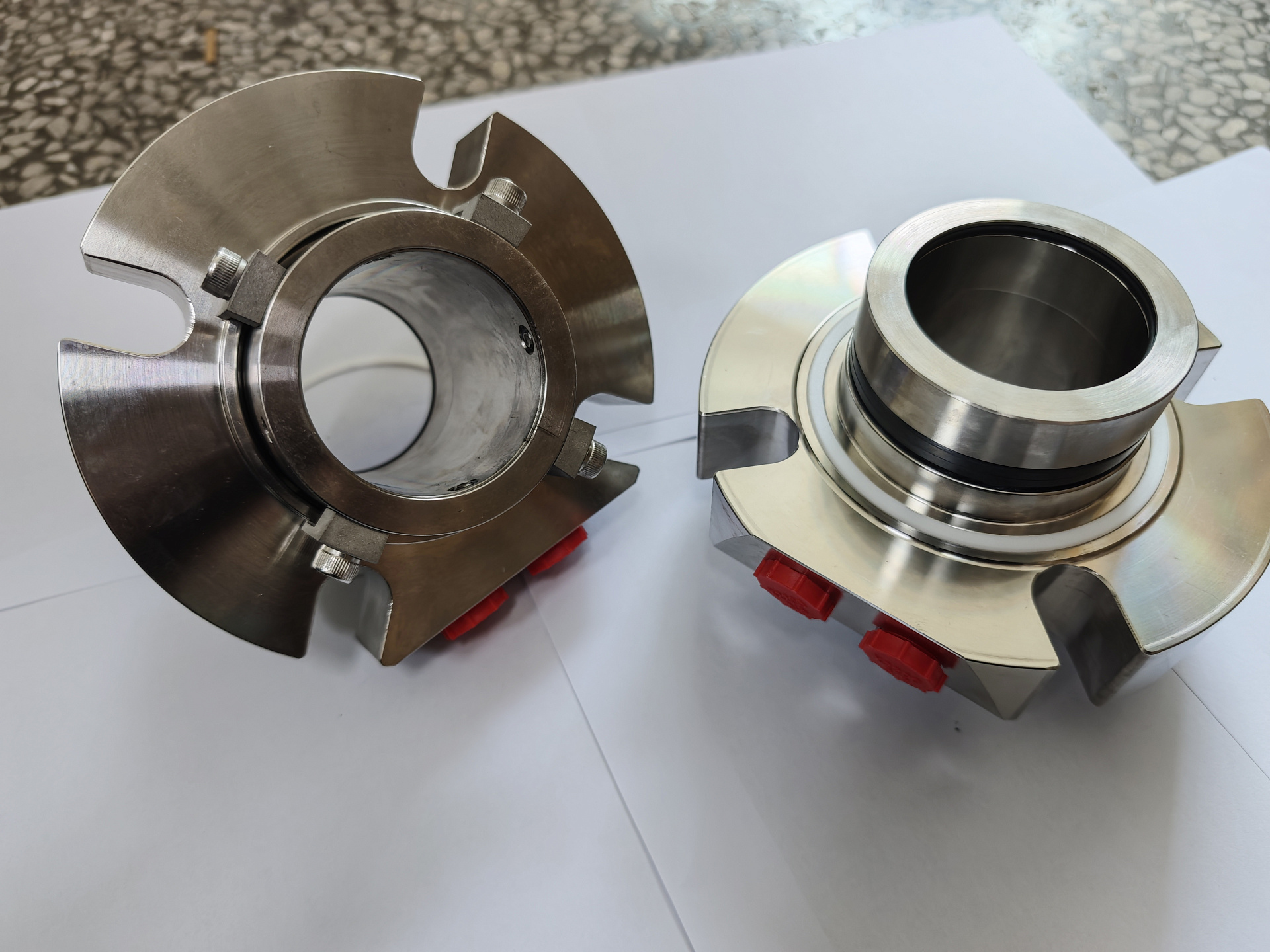

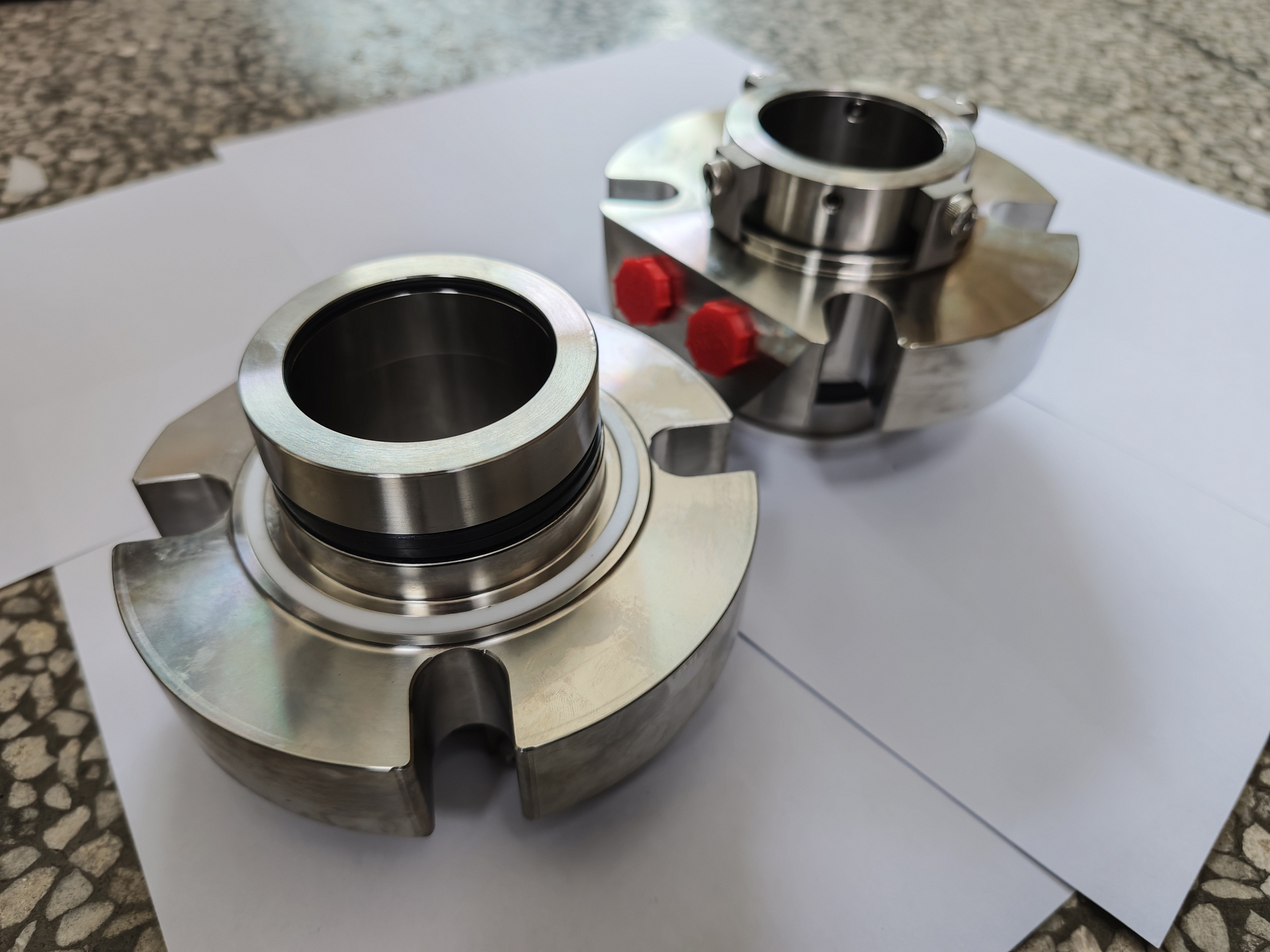

R-BED Cartridge Seal

Temperature: -20°~200°

Pressure: ≤1.6 MPa

Speed: ≤12.5 m/s

Materials

  1. Rotary ring: SIC/TC
  2. Stationary ring: CAR/SIC/TC
  3. Bellow: EPDM/VITON/NBR/FFKM
  4. Spring: M (Hastelloy® C-4)
  5. Metal parts: M (Hastelloy® C-4)/SS316

The R-BED double cartridge agitator seal is a fully assembled unit designed for use in pumps and mixers.

Features:

  • Shaft diameter: d = 22 ... 100 mm;
  • Balanced;
  • Independent of shaft rotation direction;
  • Multi-spring unit;
  • Requires a buffer (according to API plans 52, 55) or barrier fluid (according to API plans 53a, 53b, 53c, 54) with pressure up to 2.0 MPa;
  • Primarily intended for use with abrasive and environmentally hazardous media (e.g., slurry, cement, suspensions, sand, etc.).

We are always ready to help you select a reliable and durable mechanical seal!
