R-7K / R-7K-U

R-7K

R-7K

R-7K

R-7K

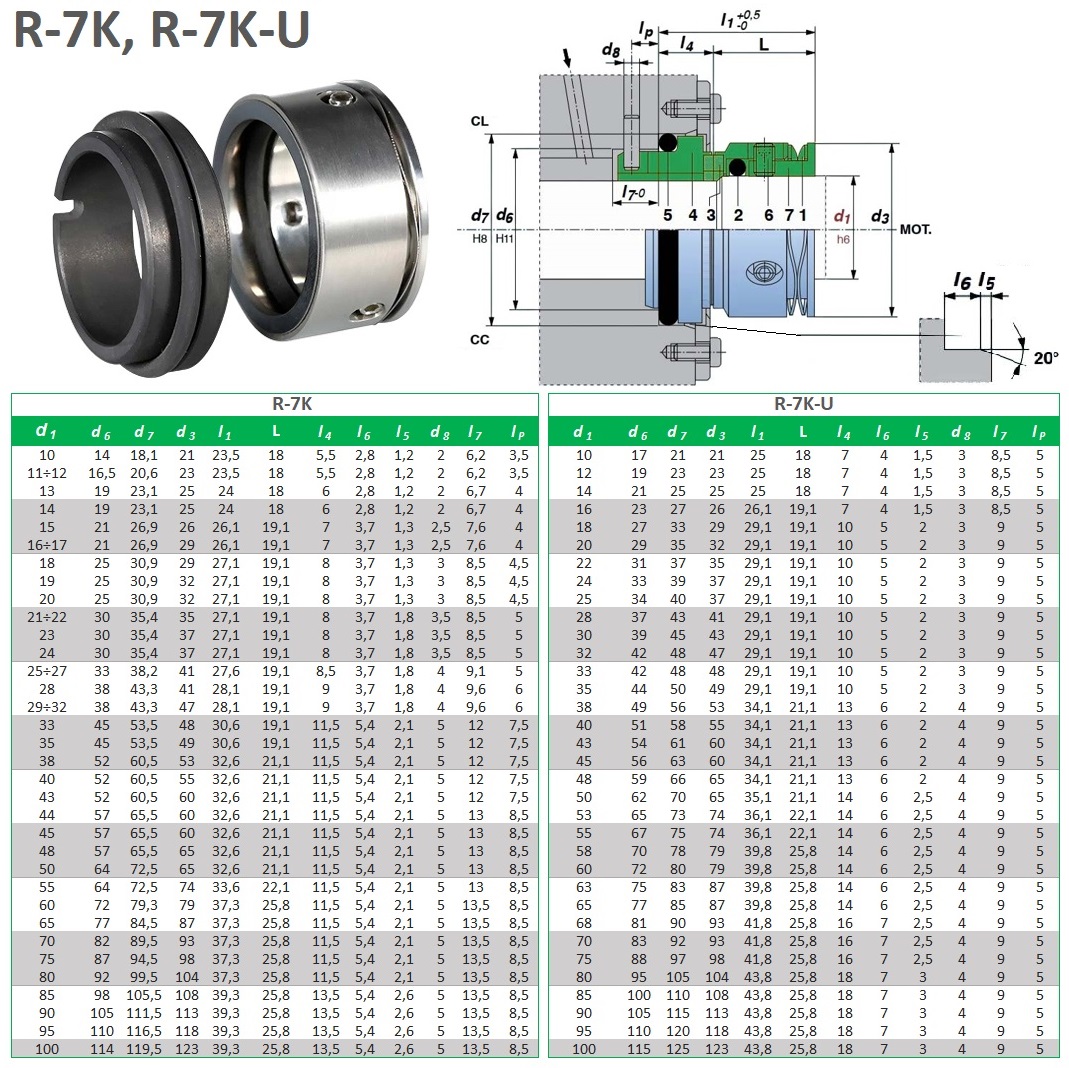

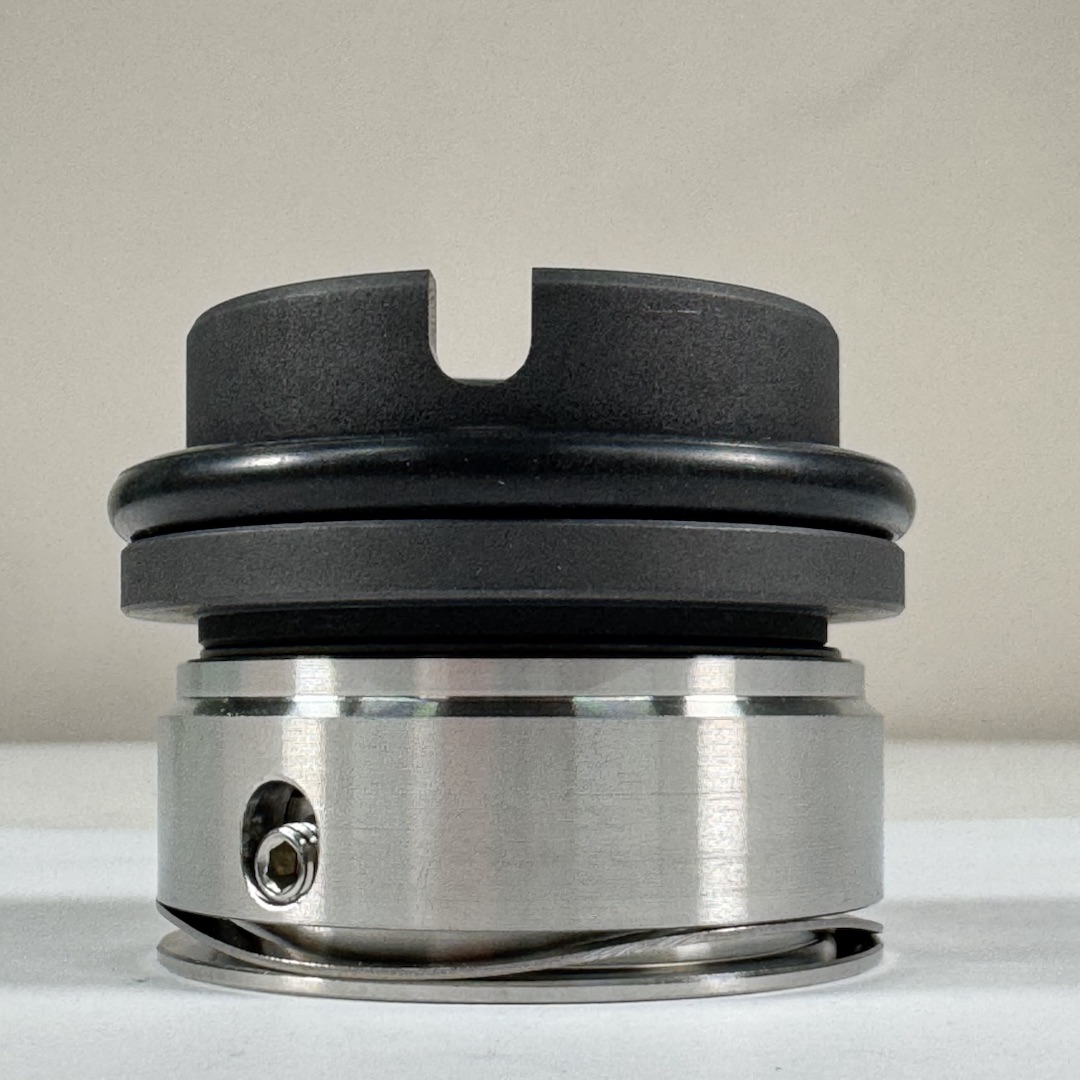

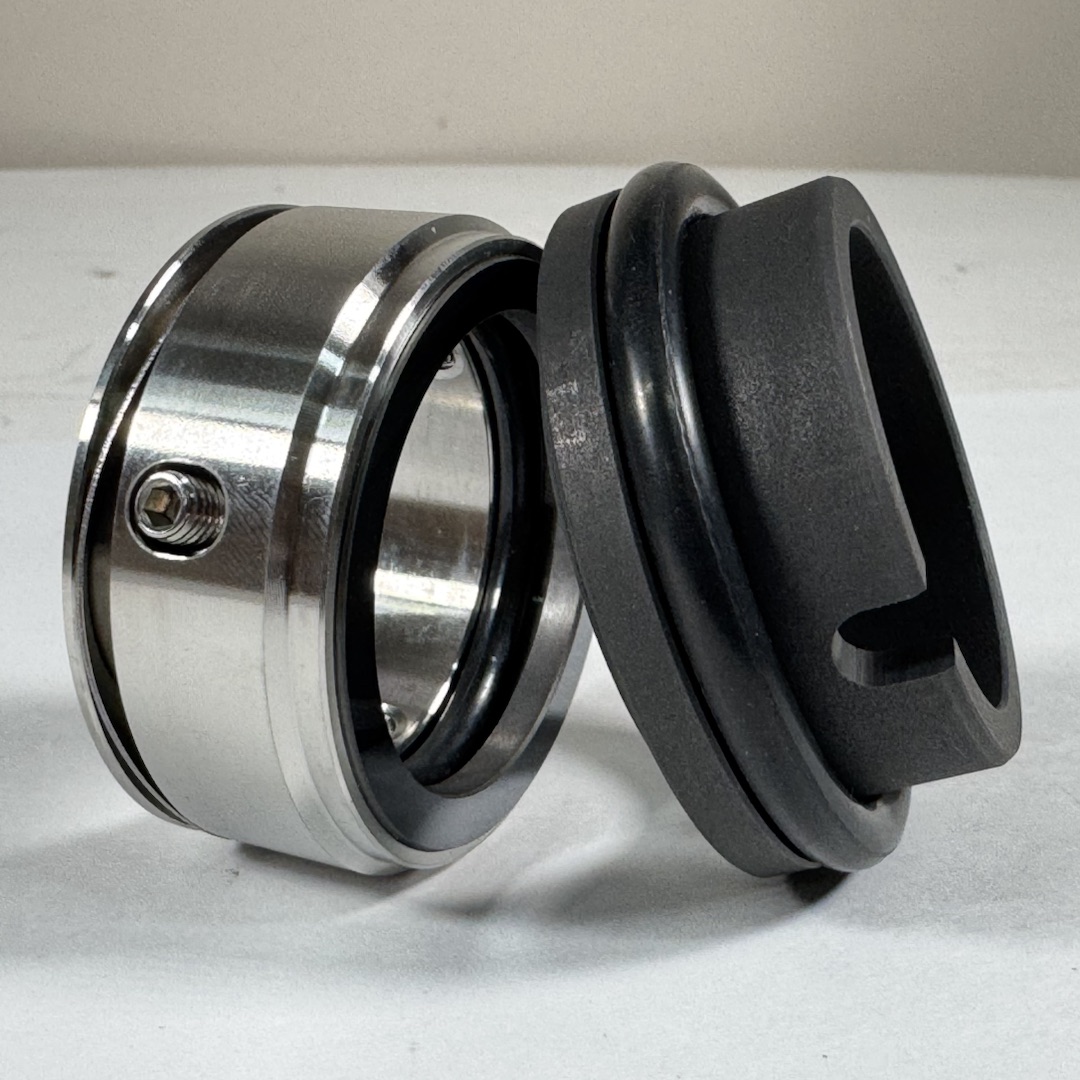

Mechanical Seal R-7K / R-7K-U

Temperature: -35℃ +180℃

Pressure: ≤1.2 MPa

Speed: ≤15 m/s

Materials

Rotary ring: CAR / SIC/ TC/SUS
Stationary ring: SIC/ CAR /TC
Bellows: EPDM/VITON/NBR/ FFKM/PTFE
Spring: SS304/SS316
Metal parts: SS304/SS316

R-7K/ R-7K-U – single mechanical seal with a wave spring, bi-directional, unbalanced. Due to its compact size and tight tolerances, careful installation is required. It can be installed both inside and outside the pump chamber. Torque transmission from the shaft and fixation to the shaft are achieved using set screws. Stationary ring options: type CC (shortened length) and CL (with extended tail and slot for a locking pin).

Used with viscous and abrasive liquids in the food, pharmaceutical, and chemical industries, particularly in Mengin 8.8 kW pumps, Omac B1 B100 V220, etc.

Type: ROTEN 7K-7KH, UNITEN 7K- 7KH, Lidering LWS71, Vulcan 1688L, AESSEAL N-W02 (AES® N-W02), Flowserve 168, Latty T510, Sterling 280.

R-7K

12/24/36/48

In stock

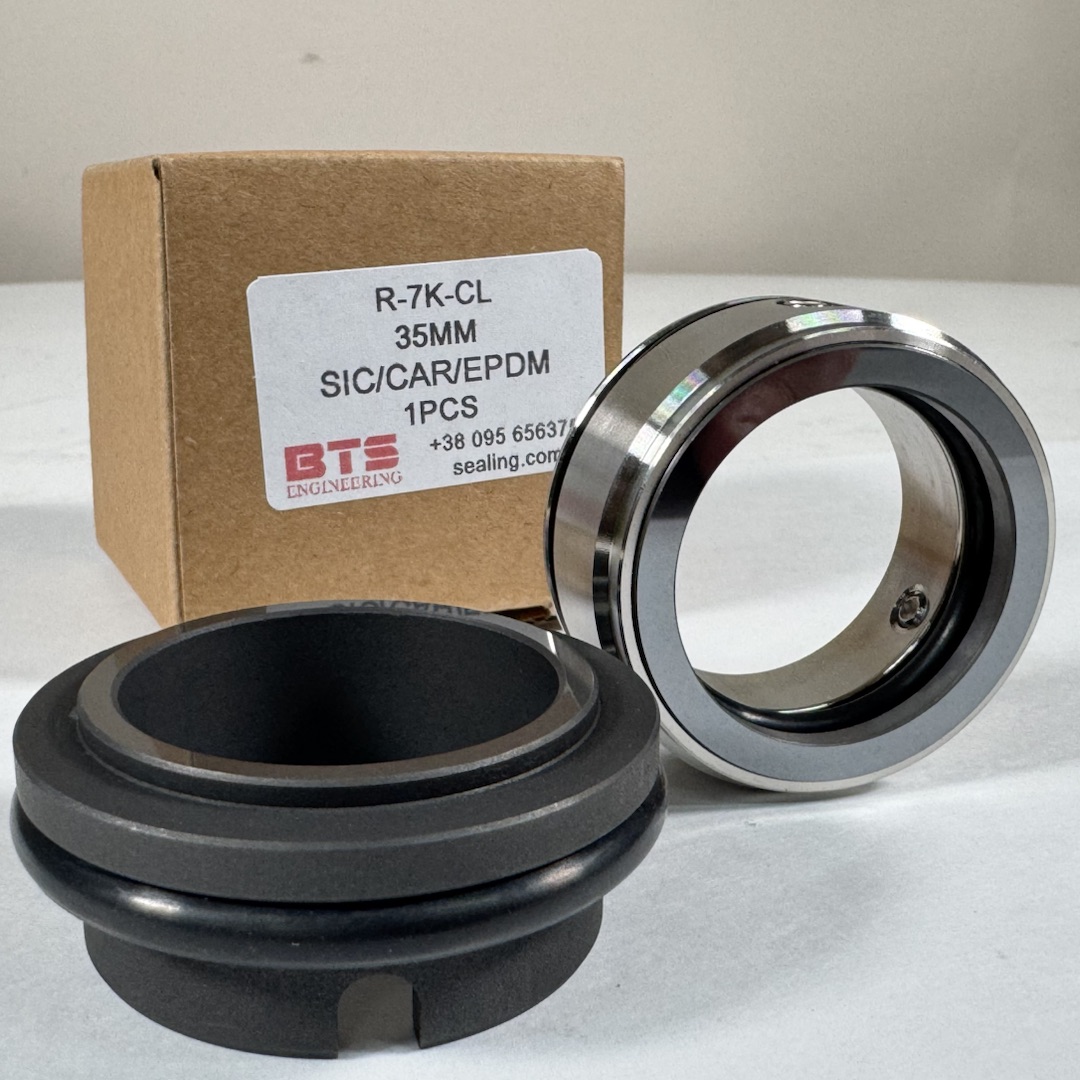

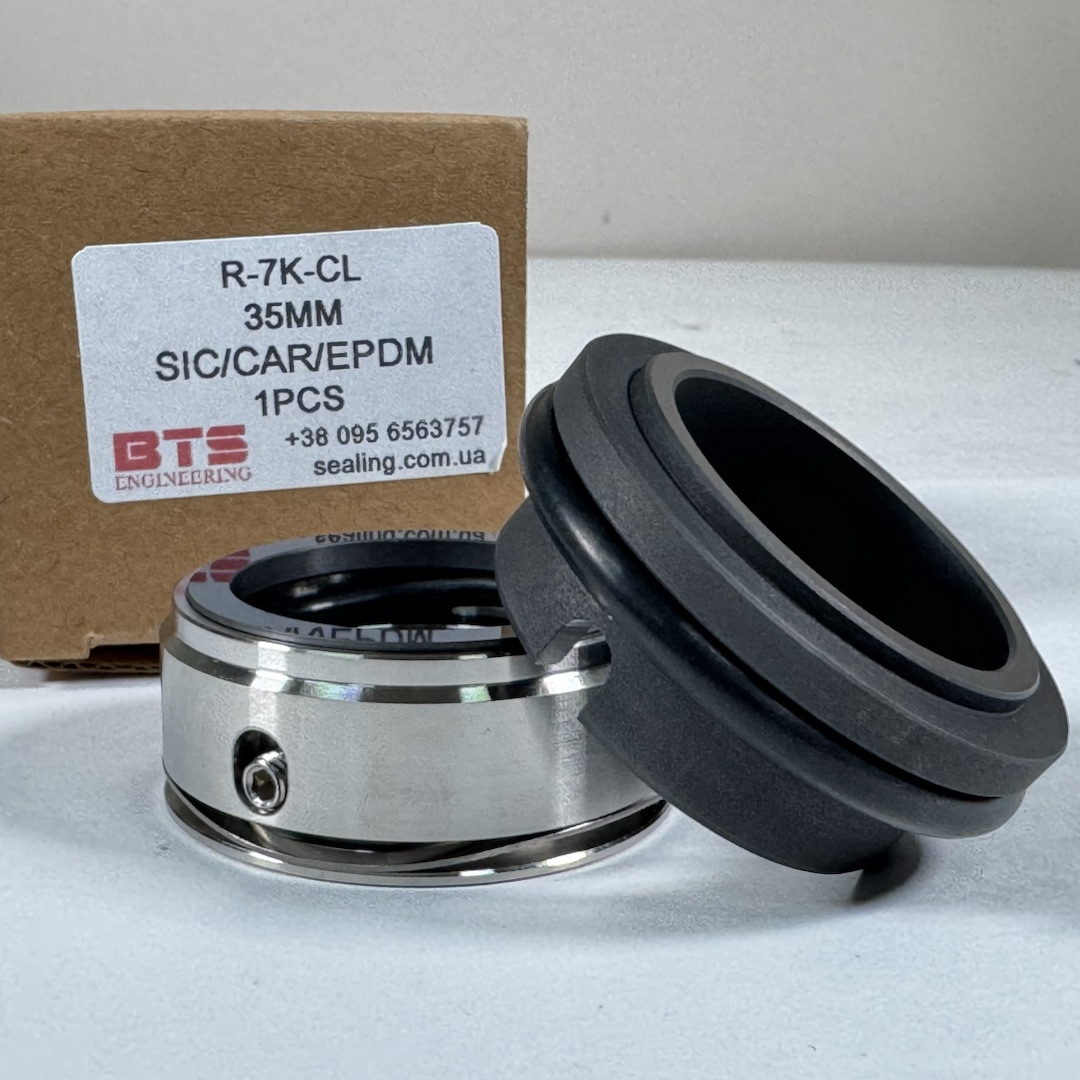

Mechanical seal R-7K 35, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 35, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 35, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 10, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 10, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 10, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 11, SIC/CAR, EPDM, 304, CL, type ROTEN 7K

Mechanical seal R-7K 11, SIC/CAR, EPDM, 304, CL, type ROTEN 7K

Mechanical seal R-7K 11, SIC/CAR, EPDM, 304, CL, type ROTEN 7KProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 13, SIC/CAR, EPDM, 304, CL with wave spring

Mechanical seal R-7K 13, SIC/CAR, EPDM, 304, CL with wave spring

Mechanical seal R-7K 13, SIC/CAR, EPDM, 304, CL with wave springProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Pump mechanical seal R-7K 14, SIC/CAR, EPDM, 304, CL

Pump mechanical seal R-7K 14, SIC/CAR, EPDM, 304, CL

Pump mechanical seal R-7K 14, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 15, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 15, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 15, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 17, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 17, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 17, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Pump mechanical seal R-7K 18, SIC/CAR, EPDM, 304, CL

Pump mechanical seal R-7K 18, SIC/CAR, EPDM, 304, CL

Pump mechanical seal R-7K 18, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 19, SIC/CAR, EPDM, 304, CL, type ROTEN 7K-7KH

Mechanical seal R-7K 19, SIC/CAR, EPDM, 304, CL, type ROTEN 7K-7KH

Mechanical seal R-7K 19, SIC/CAR, EPDM, 304, CL, type ROTEN 7K-7KHProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 20, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 20, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 20, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 22, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 22, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 22, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal for pump R-7K 23, SIC/CAR, EPDM, 304, CL

Mechanical seal for pump R-7K 23, SIC/CAR, EPDM, 304, CL

Mechanical seal for pump R-7K 23, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 24, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 24, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 24, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 25, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 25, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 25, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal type ROTEN 7K R-7K 28, SIC/CAR, EPDM, 304, CL

Mechanical seal type ROTEN 7K R-7K 28, SIC/CAR, EPDM, 304, CL

Mechanical seal type ROTEN 7K R-7K 28, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 30, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 30, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 30, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 32, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 32, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 32, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 33, SIC/CAR, EPDM, 304, CL, type ROTEN 7K-7KH

Mechanical seal R-7K 33, SIC/CAR, EPDM, 304, CL, type ROTEN 7K-7KH

Mechanical seal R-7K 33, SIC/CAR, EPDM, 304, CL, type ROTEN 7K-7KHProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 38, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 38, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 38, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal type ROTEN 7K R-7K 40, SIC/CAR, EPDM, 304, CL

Mechanical seal type ROTEN 7K R-7K 40, SIC/CAR, EPDM, 304, CL

Mechanical seal type ROTEN 7K R-7K 40, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 43, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 43, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 43, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal for pump R-7K 44, SIC/CAR, EPDM, 304, CL

Mechanical seal for pump R-7K 44, SIC/CAR, EPDM, 304, CL

Mechanical seal for pump R-7K 44, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal of the pump R-7K 45, SIC/CAR, EPDM, 304, CL

Mechanical seal of the pump R-7K 45, SIC/CAR, EPDM, 304, CL

Mechanical seal of the pump R-7K 45, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 48, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 48, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 48, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 50, SIC/CAR, EPDM, 304, CL with wave spring

Mechanical seal R-7K 50, SIC/CAR, EPDM, 304, CL with wave spring

Mechanical seal R-7K 50, SIC/CAR, EPDM, 304, CL with wave springProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 55, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 55, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 55, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 60, SIC/CAR, EPDM, 304, CL, type ROTEN 7K

Mechanical seal R-7K 60, SIC/CAR, EPDM, 304, CL, type ROTEN 7K

Mechanical seal R-7K 60, SIC/CAR, EPDM, 304, CL, type ROTEN 7KProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 65, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 65, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 65, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal R-7K 70, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 70, SIC/CAR, EPDM, 304, CL

Mechanical seal R-7K 70, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s

Mechanical seal type ROTEN 7K R-7K 75, SIC/CAR, EPDM, 304, CL

Mechanical seal type ROTEN 7K R-7K 75, SIC/CAR, EPDM, 304, CL

Mechanical seal type ROTEN 7K R-7K 75, SIC/CAR, EPDM, 304, CLProducer:BTS EngineeringPressure:1.2 MPaOperating temperature:-35°C +180°CSeal type:R-7KRotation velocity:15 m/s
